Product Details
Place of Origin: Shenzhen Guangdong China
Brand Name: BOZEX
Certification: DIN, ISO, ANSI, GB, JIS
Model Number: BZX.S020613-M3-25
Payment & Shipping Terms
Minimum Order Quantity: 1000pcs
Packaging Details: 1000pcs/ box box size: 20cm*20cm*10cm
Delivery Time: 5-8working days
Payment Terms: T/T, L/C
Supply Ability: 50Million pcs per day
Product Name: |
Brass Phillips Flat Head Screws |
Product Material: |
Brass |
Screw Color: |
Brass Yellow |
Grade: |
10.9, 8.8, 4.8, A2-70, Gr5 |
Screw Length: |
4 Mm To 35mm |
Finish: |
Yellow Brass,Plain, Zinc Plated, Black, ZP, Etc |
Packaging: |
Cartons+plastic Bags, Inner Packing By Plastic Bag; Outer Packing By Carton Box |
Port: |
Shenzhen , Ningbo, Shanghai |
Product Name: |
Brass Phillips Flat Head Screws |
Product Material: |
Brass |
Screw Color: |
Brass Yellow |
Grade: |
10.9, 8.8, 4.8, A2-70, Gr5 |
Screw Length: |
4 Mm To 35mm |
Finish: |
Yellow Brass,Plain, Zinc Plated, Black, ZP, Etc |
Packaging: |
Cartons+plastic Bags, Inner Packing By Plastic Bag; Outer Packing By Carton Box |
Port: |
Shenzhen , Ningbo, Shanghai |

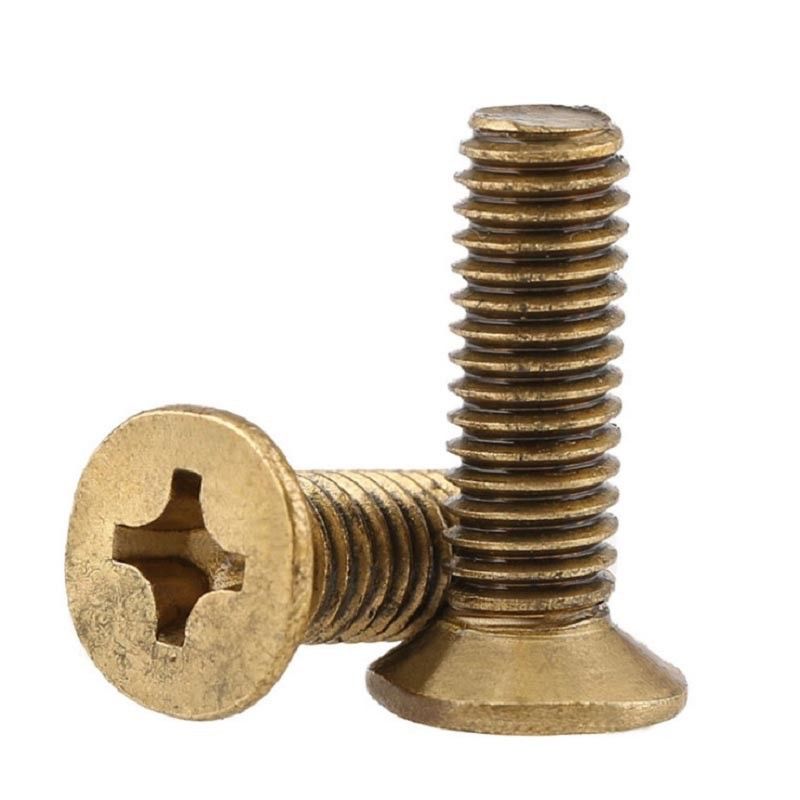

Brass Phillips Flat Head Screws Stainless
Product Quck Details:
Product Name: Brass Phillips Flat Head Screws Stainless
Original Material: Brass, Stainless Steel, Alloy
Screw Size: M4 , M5, M6 Screw Length: 4 mm to 35mm or customized
Delivery Way: Shipping by Sea, By Air, By DHL, UPS, FEDEX
Payment Term: T/T, Western Union, L/C
Brass Phillips Flat Head Screws Stainless Specifcation
Brass Phillips Flat Head Screws Stainless
The cross recessed pan head tapping screw is composed of three parts: the head, the shaft and the end of the shaft. The composition of each self-tapping screw has four major elements: the shape of the head, the way of screwing, the type of thread, and the type of end
Brass Phillips Flat Head Screws recessed pan head tapping screws are used for non-metal or softer metals, and there is no need to drill and tap; self tapping screws are pointed, so that they can tap; ordinary screws are flat heads and have the same thickness. Self tapping The screw means: the drilled hole is a hole that does not need to be tapped. The screw used is different from the general one. The tip is pointed and the pitch is relatively large. It is a bit like a chipless tap. It can be directly screwed in without tapping. Metal This method is usually used with plastics.
Brass Phillips Flat Head Screws Stainless Parameters and Drawing
| Size | Code | Dia. | Heat Ht. | Lg. |
| M2.0 x 4 | BZX.S020613-M2-4 | 3.8 | 1.2 | 4 |
| M2.0 x 5 | BZX.S020613-M2-5 | 3.8 | 1.2 | 5 |
| M2.0 x 6 | BZX.S020613-M2-6 | 3.8 | 1.2 | 6 |
| M2.0 x 8 | BZX.S020613-M2-8 | 3.8 | 1.2 | 8 |
| M2.5 x 4 | BZX.S020613-M2.5-4 | 4.7 | 1.5 | 4 |
| M2.5 x 5 | BZX.S020613-M2.5-5 | 4.7 | 1.5 | 5 |
| M2.5 x 6 | BZX.S020613-M2.5-6 | 4.7 | 1.5 | 6 |
| M2.5 x 8 | BZX.S020613-M2.5-8 | 4.7 | 1.5 | 8 |
| M2.5 x 10 | BZX.S020613-M2.5-10 | 4.7 | 1.5 | 10 |
| M2.5x 12 | BZX.S020613-M2.5-12 | 4.7 | 1.5 | 12 |
| M3 x 5 | BZX.S020613-M3-5 | 5.5 | 1.65 | 5 |
| M3 x 6 | BZX.S020613-M3-6 | 5.5 | 1.65 | 6 |
| M3 x 8 | BZX.S020613-M3-8 | 5.5 | 1.65 | 8 |
| M3 x 10 | BZX.S020613-M3-10 | 5.5 | 1.65 | 10 |
| M3x 12 | BZX.S020613-M3-12 | 5.5 | 1.65 | 12 |
| M3 x 16 | BZX.S020613-M3-16 | 5.5 | 1.65 | 16 |
| M3 x 20 | BZX.S020613-M3-20 | 5.5 | 1.65 | 20 |
| M3 x 25 | BZX.S020613-M3-25 | 5.5 | 1.65 | 25 |
| M4 x 6 | BZX.S020613-M4-6 | 8.4 | 2.7 | 6 |
| M4 x 8 | BZX.S020613-M4-8 | 8.4 | 2.7 | 8 |
| M4 x 10 | BZX.S020613-M4-10 | 8.4 | 2.7 | 10 |
| M4x 12 | BZX.S020613-M4-12 | 8.4 | 2.7 | 12 |
| M4 x 16 | BZX.S020613-M4-16 | 8.4 | 2.7 | 16 |
| M4 x 20 | BZX.S020613-M4-20 | 8.4 | 2.7 | 20 |
| M4 x 25 | BZX.S020613-M4-25 | 8.4 | 2.7 | 25 |
| M4 x 30 | BZX.S020613-M4-30 | 8.4 | 2.7 | 30 |
| M4 x 35 | BZX.S020613-M4-35 | 8.4 | 2.7 | 35 |
| M4 x 40 | BZX.S020613-M4-40 | 8.4 | 2.7 | 40 |
| M5 x 10 | BZX.S020613-M5-10 | 9.3 | 2.7 | 10 |
| M5x 12 | BZX.S020613-M5-12 | 9.3 | 2.7 | 12 |
| M5 x 16 | BZX.S020613-M5-16 | 9.3 | 2.7 | 16 |
| M5 x 20 | BZX.S020613-M5-20 | 9.3 | 2.7 | 20 |
| M5 x 25 | BZX.S020613-M5-25 | 9.3 | 2.7 | 25 |
| M5 x 30 | BZX.S020613-M5-30 | 9.3 | 2.7 | 30 |
| M5 x 35 | BZX.S020613-M5-35 | 9.3 | 2.7 | 35 |
| M5 x 40 | BZX.S020613-M5-40 | 9.3 | 2.7 | 40 |
| M6 x 10 | BZX.S020613-M6-10 | 11.3 | 3.3 | 10 |
| M6 x 12 | BZX.S020613-M6-12 | 11.3 | 3.3 | 12 |
| M6 x 16 | BZX.S020613-M6-16 | 11.3 | 3.3 | 16 |
| M6 x 20 | BZX.S020613-M6-20 | 11.3 | 3.3 | 20 |
| M6 x 25 | BZX.S020613-M6-25 | 11.3 | 3.3 | 25 |
| M6 x 30 | BZX.S020613-M6-30 | 11.3 | 3.3 | 30 |
| M6 x 35 | BZX.S020613-M6-35 | 11.3 | 3.3 | 35 |
Brass Phillips Flat Head Screws Stainless
