Product Details
Place of Origin: Shenzhen Guangdong China
Brand Name: BOZEX
Certification: DIN, ISO, ANSI, GB, JIS
Model Number: BZX.S020708-M12-30
Payment & Shipping Terms
Minimum Order Quantity: 1000pcs
Packaging Details: 1000pcs/ box box size: 20cm*20cm*10cm
Delivery Time: 5-8working days
Payment Terms: T/T, L/C
Supply Ability: 50Million pcs per day
Product Name: |
Iron Zinc Plated Slotted Stainless Steel Flat Head Screws |
Material: |
Titanium Steel , 304 Stainless Steel, Carbon Steel |
Certificate: |
DIN, ISO, ANSI, GB, JIS |
Type: |
Hex Socket, Indented Hex Washer Head, Double Flat Head, Pan Head, Flange Etc Machine Screw, Wood Screw |
Thread Size: |
M2, M2.5, M3, M4 , M5, M6, M8, M10, M12 |
Length: |
3 - 40mm |
Sample: |
Ok, Avaliable (shipping Costs Needed), If We Have The Tools Available |
Product Name: |
Iron Zinc Plated Slotted Stainless Steel Flat Head Screws |
Material: |
Titanium Steel , 304 Stainless Steel, Carbon Steel |
Certificate: |
DIN, ISO, ANSI, GB, JIS |
Type: |
Hex Socket, Indented Hex Washer Head, Double Flat Head, Pan Head, Flange Etc Machine Screw, Wood Screw |
Thread Size: |
M2, M2.5, M3, M4 , M5, M6, M8, M10, M12 |
Length: |
3 - 40mm |
Sample: |
Ok, Avaliable (shipping Costs Needed), If We Have The Tools Available |

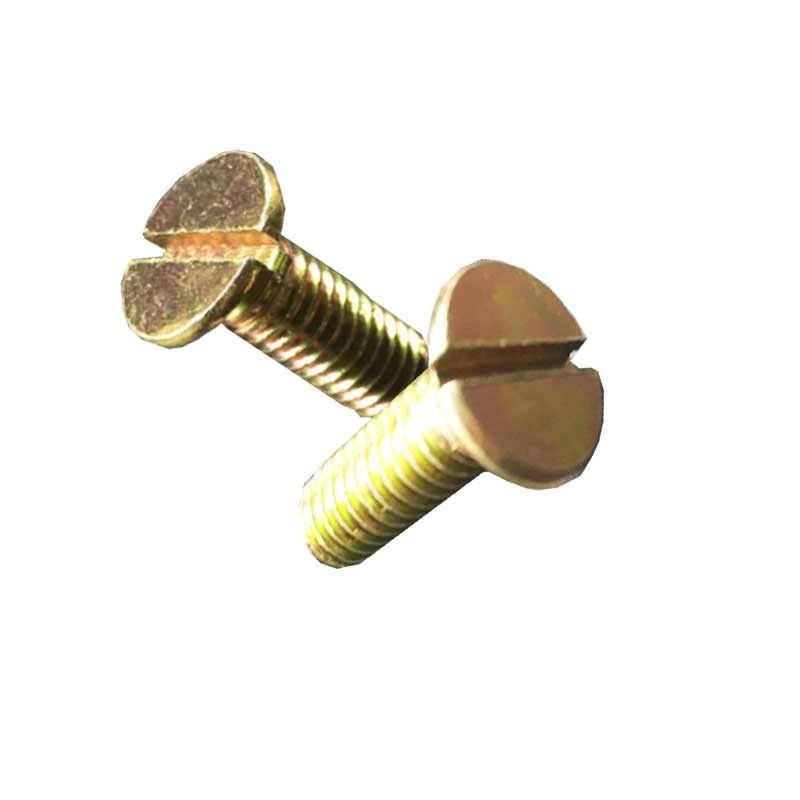

Iron Zinc Plated Slotted Stainless Steel Flat Head Screws
Quick Details:
Product Name: Iron Zinc Plated Slotted Stainless Steel Flat Head Screws
Original Material: Iron,Titanium Steel , 304 Stainless Steel, carbon steel
Screw Size: M2, M2.5, M3, M4 , M5, M6, M8, M10, M12 Length: 3 - 40(mm)
Function Screw Type: Machine Screw, Wood screw
Packaging: Cartons+plastic Bags, Inner packing by plastic bag; outer packing by carton box
Trade Term: EXW, CIF, FOB
Iron Zinc Plated Slotted Stainless Steel Flat Head Screws Specifcation
1. Galvanized iron refers to a zinc-iron alloy product made by galvanizing the iron sheet through a galvanizing process
2. The galvanized iron sheet is not easy to rust. Commonly known as lead iron and white iron.
3. Why is it not easy to rust? 1. It acts as a protective layer on the surface of the iron
4. If the coating is damaged, a zinc-iron galvanic battery can be formed. Iron is used as the positive electrode. Using the principle of cathodic protection of the sacrificial anode, the iron is protected.
5. Iron Zinc Plated Slotted Stainless Steel Flat Head Screws , What is the washer, it is the head of the screw is cross-shaped, the cross is a cross with a fine blanking, stamping made. For the material, phillips pan head screws are made of iron which is into carbon steel, stainless steel is also divided. There are three types of carbon steel, low carbon steel, middle carbon steel, high carbon steel. Stainless steel also has different type: stainless steel SUS201 stainless steel SUS304, stainless steel SUS316, stainless steel SUS404 and the like.
Iron Zinc Plated Slotted Stainless Steel Flat Head Screws Parameters and Drawing
| Size | Code | Dia. | Heat Ht. | Lg. |
| M2.0 x 3 | BZX.S020708-M2-3 | 4 | 1.9 | 3 |
| M2.0 x 4 | BZX.S020708-M2-4 | 4 | 1.9 | 4 |
| M2.0 x 5 | BZX.S020708-M2-5 | 4 | 1.9 | 5 |
| M2.0 x 6 | BZX.S020708-M2-6 | 4 | 1.9 | 6 |
| M2.0 x 8 | BZX.S020708-M2-8 | 4 | 1.9 | 8 |
| M2.0 x 10 | BZX.S020708-M2-10 | 4 | 1.9 | 10 |
| M2.0x 12 | BZX.S020708-M2-12 | 4 | 1.9 | 12 |
| M2.0 x 14 | BZX.S020708-M2-14 | 4 | 1.9 | 14 |
| M2.0 x 16 | BZX.S020708-M2-16 | 4 | 1.9 | 16 |
| M2.0 x 18 | BZX.S020708-M2-18 | 4 | 1.9 | 18 |
| M2.0 x 20 | BZX.S020708-M2-20 | 4 | 1.9 | 20 |
| M2.0 x 22 | BZX.S020708-M2-22 | 4 | 1.9 | 22 |
| M2.0 x 25 | BZX.S020708-M2-25 | 4 | 1.9 | 25 |
| M3 x 4 | BZX.S020708-M3-4 | 6 | 2.5 | 4 |
| M3 x 5 | BZX.S020708-M3-5 | 6 | 2.5 | 5 |
| M3 x 6 | BZX.S020708-M3-6 | 6 | 2.5 | 6 |
| M3 x 8 | BZX.S020708-M3-8 | 6 | 2.5 | 8 |
| M3 x 10 | BZX.S020708-M3-10 | 6 | 2.5 | 10 |
| M3x 12 | BZX.S020708-M3-12 | 6 | 2.5 | 12 |
| M3 x 14 | BZX.S020708-M3-14 | 6 | 2.5 | 14 |
| M3 x 16 | BZX.S020708-M3-16 | 6 | 2.5 | 16 |
| M3 x 18 | BZX.S020708-M3-18 | 6 | 2.5 | 18 |
| M3 x 20 | BZX.S020708-M3-20 | 6 | 2.5 | 20 |
| M3 x 22 | BZX.S020708-M3-22 | 6 | 2.5 | 22 |
| M3 x 25 | BZX.S020708-M3-25 | 6 | 2.5 | 25 |
| M3 x 30 | BZX.S020708-M3-30 | 6 | 2.5 | 30 |
| M3 x 35 | BZX.S020708-M3-35 | 6 | 2.5 | 35 |
| M3 x 40 | BZX.S020708-M3-40 | 6 | 2.5 | 40 |
| M3 x 45 | BZX.S020708-M3-45 | 6 | 2.5 | 45 |
| M3 x 50 | BZX.S020708-M3-50 | 6 | 2.5 | 50 |
| M5 x 6 | BZX.S020708-M5-6 | 10 | 4.1 | 6 |
| M5 x 8 | BZX.S020708-M5-8 | 10 | 4.1 | 8 |
| M5 x 10 | BZX.S020708-M5-10 | 10 | 4.1 | 10 |
| M5x 12 | BZX.S020708-M5-12 | 10 | 4.1 | 12 |
| M5 x 14 | BZX.S020708-M5-14 | 10 | 4.1 | 14 |
| M5 x 16 | BZX.S020708-M5-16 | 10 | 4.1 | 16 |
| M5 x 18 | BZX.S020708-M5-18 | 10 | 4.1 | 18 |
| M5 x 20 | BZX.S020708-M5-20 | 10 | 4.1 | 20 |
| M5 x 22 | BZX.S020708-M5-22 | 10 | 4.1 | 22 |
| M5 x 25 | BZX.S020708-M5-25 | 10 | 4.1 | 25 |
| M5 x 30 | BZX.S020708-M5-30 | 10 | 4.1 | 30 |
| M5 x 35 | BZX.S020708-M5-35 | 10 | 4.1 | 35 |
| M5 x 40 | BZX.S020708-M5-40 | 10 | 4.1 | 40 |
| M5 x 45 | BZX.S020708-M5-45 | 10 | 4.1 | 45 |
| M5 x 50 | BZX.S020708-M5-50 | 10 | 4.1 | 50 |
| M5 x 55 | BZX.S020708-M5-55 | 10 | 4.1 | 55 |
| M5 x 60 | BZX.S020708-M5-60 | 10 | 4.1 | 60 |
| M5 x 65 | BZX.S020708-M5-65 | 10 | 4.1 | 65 |
| M5 x 70 | BZX.S020708-M5-70 | 10 | 4.1 | 70 |
| M5 x 75 | BZX.S020708-M5-75 | 10 | 4.1 | 75 |
| M5 x 80 | BZX.S020708-M5-80 | 10 | 4.1 | 80 |
| M5 x 85 | BZX.S020708-M5-85 | 10 | 4.1 | 85 |
| M5 x 90 | BZX.S020708-M5-90 | 10 | 4.1 | 90 |
| M5 x 95 | BZX.S020708-M5-95 | 10 | 4.1 | 95 |
| M5 x 100 | BZX.S020708-M5-100 | 10 | 4.1 | 100 |
| M6 x 8 | BZX.S020708-M6-8 | 12 | 4.9 | 8 |
| M6 x 10 | BZX.S020708-M6-10 | 12 | 4.9 | 10 |
| M6 x 12 | BZX.SS020708-M6-12 | 12 | 4.9 | 12 |
| M6 x 14 | BZX.S020708-M6-14 | 12 | 4.9 | 14 |
| M6 x 16 | BZX.S020708-M6-16 | 12 | 4.9 | 16 |
| M6 x 18 | BZX.S020708-M6-18 | 12 | 4.9 | 18 |
| M6 x 20 | BZX.S020708-M6-20 | 12 | 4.9 | 20 |
| M6 x 22 | BZX.S020708-M6-22 | 12 | 4.9 | 22 |
| M12 x 25 | BZX.S020708-M12-16 | 21.3 | 5.8 | 16 |
| M12 x 30 | BZX.S020708-M12-20 | 21.3 | 5.8 | 20 |
| M12x 35 | BZX.S020708-M12-25 | 21.3 | 5.8 | 25 |
| M12 x 40 | BZX.S020708-M12-30 | 21.3 | 5.8 | 30 |
Iron Zinc Plated Slotted Stainless Steel Flat Head Screws
Advantages
1.Exact forging standard of knife edge and high hardness of surface make it easy to drill.
2.Using the advanced technology to control the core hardness, avoiding rupture effectivity,
3. Quick self drilling , drilling , tapping, locking the oncce, and combining with the strength.
4. Save contruction time, improve working efficency.
5. Technology, professional manufacturing , quality assurance.
