Product Details
Place of Origin: Shenzhen Dongguang China
Brand Name: BOZEX
Certification: ISO9001 DIN
Model Number: BZX.S080703-M4-20
Payment & Shipping Terms
Minimum Order Quantity: 1000PCS
Packaging Details: box size: 20cm*20cm*10cm
Delivery Time: 5-8working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50Million pcs per day
Other Name: |
304 Stainless Steel Phillips Rounded Head Self Tapping Screws With Washer |
Material: |
Alloy Steel ,304 Stainless Steel |
Apply For: |
Machine, Furniture, Lamps |
Advantage: |
No Need Open Hole |
Thread Dimension: |
M2 , M2.2, M2.6, M3 , M4 |
Screw Length: |
4 - 20mm |
Finish: |
Natural, Zinc Plated, Black Oxide |
Shape Style: |
Rounded Head |
Other Name: |
304 Stainless Steel Phillips Rounded Head Self Tapping Screws With Washer |
Material: |
Alloy Steel ,304 Stainless Steel |
Apply For: |
Machine, Furniture, Lamps |
Advantage: |
No Need Open Hole |
Thread Dimension: |
M2 , M2.2, M2.6, M3 , M4 |
Screw Length: |
4 - 20mm |
Finish: |
Natural, Zinc Plated, Black Oxide |
Shape Style: |
Rounded Head |

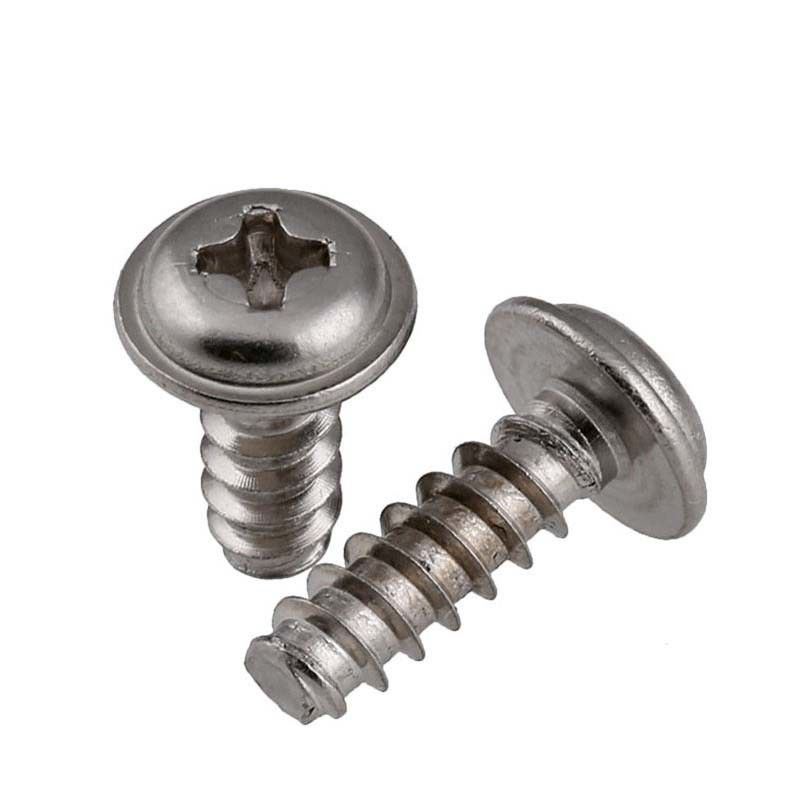

304 Stainless Steel Phillips Self Tapping Screws Of Rounded Head Blunt With Washer
Screw Details:
Product Other Name: 304 Stainless Steel Phillips Rounded Head Self-Tapping Screws with Washer
Original Material: 304 Stainless Steel, Alloy Steel, 316 Steel, 201 Stainless Steel, Aluminum
Size: M2 , M2.2, M2.6, M3 , M4 Length: 4 - 20mm
Package:Small box package in carton then on wood pallets
Products Description
1. Thread Forming self-tapping Screws (Thread Forming Tapping Screws) is developed directly by the iron screw, screw Thread Forming self Tapping Screws when using prior drilling, then the screw hole, strong extrusion with female Thread and the original material will be packed in the position of female to male, between this call of Thread Forming self Tapping screw only can be applied to thin and malleable materials and thus developed: Thread Cutting self-tapping Screws (Thread Cutting Tapping Screws) - in the end of thread cutting, cutting out one or more of the can in advance screwing in drilling, using screw tail and teeth in a similar way of tap cutting out together with the female thread it can be used in thick plate, more hard and brittle materials is not easy to shape
2. 304 Stainless Steel Phillips Self Tapping Screws Of Rounded Head Blunt With Washer produced by fully automatic process with advanced equipments, to ensure the processing density of copper.
304 Stainless Steel Phillips Self Tapping Screws Of Rounded Head Blunt With Washer Parameters and Drawing
| Size | Code | Flange Dia. | Head Ht. | Lg. |
| M2 x 4 | BZX.S080703-M2-4 | 5 | 1.39 | 4 |
| M2 x 5 | BZX.S080703-M2-5 | 5 | 1.39 | 5 |
| M2 x 6 | BZX.S080703-M2-6 | 5 | 1.39 | 6 |
| M2 x 8 | BZX.S080703-M2-8 | 5 | 1.39 | 8 |
| M2 x 10 | BZX.S080703-M2-10 | 5 | 1.39 | 10 |
| M2.2 x 5 | BZX.S080703-M2.2-5 | 5.2 | 1.6 | 5 |
| M2.2 x 6 | BZX.S080703-M2.2-6 | 5.2 | 1.6 | 6 |
| M2.2 x 8 | BZX.S080703-M2.2-8 | 5.2 | 1.6 | 8 |
| M2.2 x 10 | BZX.S080703-M2.2-10 | 5.2 | 1.6 | 10 |
| M2.2 x 12 | BZX.S080703-M2.2-12 | 5.2 | 1.6 | 12 |
| M2.6 x 6 | BZX.S080703-M2.6-6 | 6 | 1.6 | 6 |
| M2.6 x 8 | BZX.S080703-M2.6-8 | 6 | 1.6 | 8 |
| M2.6 x 10 | BZX.S080703-M2.6-10 | 6 | 1.6 | 10 |
| M2.6 x 12 | BZX.S080703-M2.6-12 | 6 | 1.6 | 12 |
| M3 x 6 | BZX.S080703-M3-6 | 7 | 1.7 | 6 |
| M3 x 8 | BZX.S080703-M3-8 | 7 | 1.7 | 8 |
| M3 x 10 | BZX.S080703-M3-10 | 7 | 1.7 | 10 |
| M3 x 12 | BZX.S080703-M3-12 | 7 | 1.7 | 12 |
| M3 x 16 | BZX.S080703-M3-16 | 7 | 1.7 | 16 |
| M4 x 8 | BZX.S080703-M4-8 | 8 | 2.2 | 8 |
| M4 x 10 | BZX.S080703-M4-10 | 8 | 2.2 | 10 |
| M4 x 12 | BZX.S080703-M4-12 | 8 | 2.2 | 12 |
| M4 x 16 | BZX.S080703-M4-16 | 8 | 2.2 | 16 |
| M4 x 20 | BZX.S080703-M4-20 | 8 | 2.2 | 20 |
Why Choose us?
1. Our company have more than 15 years experience in the Stainless Steel Screws field.
2. We have Professional experienced engineers, sales and overseas engineers.
3. We have automatically generate machines produce the screws, Bolts, Nuts, Washers and so on .
4. Our high productivity can make sure your quickly delivery time.
5. We have professional quality Checking department, make sure good quality.
