Home > products > Stainless Steel Self Tapping Screws > M4 316 Stainless Steel Self Tapping Screws Rounded Head 4-20mm With Washer

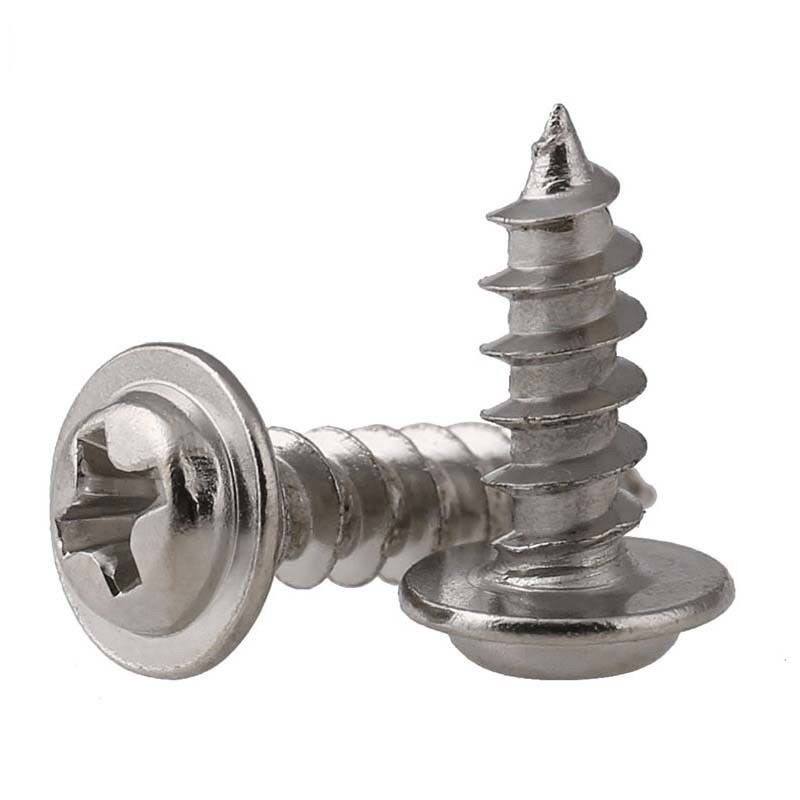

M4 316 Stainless Steel Self Tapping Screws Rounded Head 4-20mm With Washer

Product Details

Place of Origin: Shenzhen China

Brand Name: BOZEX

Certification: ISO9001 DIN

Model Number: BZX.S080704-M4-20

Payment & Shipping Terms

Minimum Order Quantity: 1000PCS

Packaging Details: box size: 20cm*20cm*10cm

Delivery Time: 5-8working days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 50Million pcs per day

Get Best Price
Highlight:

M4 Stainless Steel Self Tapping Screws

,

4mm Stainless Steel Self Tapping Screws

,

20mm self tapping screws

Other Name:
304 Stainless Steel Phillips Rounded Head Self Tapping Screws With Washer
Product Material:
304 Stainless Steel,Alloy
Connection:
Common
Usage:
Machine, Furniture, Equipment, Lamps
Thread Size(T):
M2, M2.6, M3, M4
Detail Length:
4 - 20mm
Finish Color:
Natural, Zinc Plated,Black, Brass Yellow
Trade Term:
EXW
Other Name:
304 Stainless Steel Phillips Rounded Head Self Tapping Screws With Washer
Product Material:
304 Stainless Steel,Alloy
Connection:
Common
Usage:
Machine, Furniture, Equipment, Lamps
Thread Size(T):
M2, M2.6, M3, M4
Detail Length:
4 - 20mm
Finish Color:
Natural, Zinc Plated,Black, Brass Yellow
Trade Term:
EXW
M4 316 Stainless Steel Self Tapping Screws Rounded Head 4-20mm With Washer

304 Stainless Steel Phillips Self Tapping Screws of Rounded Head with Washer



Product Quick Details:

Screw Name:304 Stainless Steel Phillips Rounded Head Self Tapping Screws with Washer

Original Product Material: 304 Stainless Steel, 316 Stainless Steel, Alloy Steel, 201 Stainless Steel,Carton Steel, A2, A4

Screw Size: M2, M2.6, M3, M4              Certificate: DIN, ISO, GB

Application: Industrial machinery, Building, Railway, Lamps, Furniture, House etc.



Products Description



1. Self Tapping screws, also called tek screws, do not require a hole to be drilled prior to use which cuts down on time needed to drill and fasten materials by combining them. These have the same heads as traditional bolts and screws, but the fastener is designed with a drill flute on the tip to drill/fasten at the same time. Useful for quick sheet metal fastening and other applications like metal to metal or wood to metal.


2. Self Tapping screws have a drill bit point. Pan heads are slightly rounded with short vertical sides. Phillips drives are + shaped for a phillips screw driver.



3. 304 Stainless Steel Phillips Self Tapping Screws of Rounded Head with Washer, What is the washer, it is the head of the screw is cross-shaped, the cross is a cross with a fine blanking, stamping made. For the material, phillips pan head screws are made of iron which is into carbon steel, stainless steel is also divided. There are three types of carbon steel, low carbon steel, middle carbon steel, high carbon steel. Stainless steel also has different type: stainless steel SUS201 stainless steel SUS304, stainless steel SUS316, stainless steel SUS404 and the like.

Usually it fingertips head, coarse teeth, hard wood screws, there are aluminum, plastics. A special self-tapping screws for metal threaded hole opening is called tapping.



4.Washer recessed pan head self-tapping screws are used for non-metal or soft metal, do not hit the hole and tapping low; self-tapping screws are pointed, so as to "self-tapping"; Ordinary screw heads are flat. The self tapping screws is to drill hole without tap holes. The screws are different with general screws.



3. 304 Stainless Steel Phillips Self Tapping Screws of Rounded Head with Washer produced by fully automatic process with advanced equipments, to ensure the processing density of copper.





​      304 Stainless Steel Phillips Rounded Head Self Tapping Screws with Washer Parameters and Drawing



M4 316 Stainless Steel Self Tapping Screws Rounded Head 4-20mm With Washer 0

Size Code Flange Dia. Head Ht. Lg.
M2 x 4 BZX.S080704-M2-4 5 1.39 4
M2 x 5 BZX.S080704-M2-5 5 1.39 5
M2 x 6 BZX.S080704-M2-6 5 1.39 6
M2 x 8 BZX.S080704-M2-8 5 1.39 8
M2 x 10 BZX.S080704-M2-10 5 1.39 10
M2.6 x 6 BZX.S080704-M2.6-6 6 1.6 6
M2.6 x 8 BZX.S080704-M2.6-8 6 1.6 8
M2.6 x 10 BZX.S080704-M2.6-10 6 1.6 10
M2.6 x 12 BZX.S080704-M2.6-12 6 1.6 12
M3 x 6 BZX.S080704-M3-6 7 1.7 6
M3 x 8 BZX.S080704-M3-8 7 1.7 8
M3 x 10 BZX.S080704-M3-10 7 1.7 10
M3 x 12 BZX.S080704-M3-12 7 1.7 12
M3 x 16 BZX.S080704-M3-16 7 1.7 16
M4 x 8 BZX.S080704-M4-8 8 2.2 8
M4 x 10 BZX.S080704-M4-10 8 2.2 10
M4 x 12 BZX.S080704-M4-12 8 2.2 12
M4 x 16 BZX.S080704-M4-16 8 2.2 16
M4 x 20 BZX.S080704-M4-20 8 2.2 20





Advantages

1. Our company have more than 15 years experience in the Stainless Steel Screws field.
2. We have Professional experienced engineers, sales and overseas engineers.

3. We have professional quality Checking department, make sure good quality.
4. 24Hrs online service.
5. Active and perfect after-sales service system.
