Product Details
Place of Origin: Shenzhen Dongguang China
Brand Name: BOZEX
Certification: ISO9001 DIN
Model Number: BZX.S080702-M5-20
Payment & Shipping Terms
Minimum Order Quantity: 1000PCS
Packaging Details: box size: 20cm*20cm*10cm
Delivery Time: 5-8working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50Million pcs per day
Other Name: |
304 Stainless Steel Phillips Rounded Head Self-Tapping Screws With Washer |
Original Material: |
Alloy Steel ,304 Stainless Steel, 201 Stainless Steel |
Thread Line: |
Single Or Double Line |
Feature: |
Cold Forging |
Thread: |
M2 , M2.6, M3 , M3.5, M4, M5 |
Screw Length: |
3 - 20mm |
Color: |
Natural |
Shape: |
Rounded Head |
Other Name: |
304 Stainless Steel Phillips Rounded Head Self-Tapping Screws With Washer |
Original Material: |
Alloy Steel ,304 Stainless Steel, 201 Stainless Steel |
Thread Line: |
Single Or Double Line |
Feature: |
Cold Forging |
Thread: |
M2 , M2.6, M3 , M3.5, M4, M5 |
Screw Length: |
3 - 20mm |
Color: |
Natural |
Shape: |
Rounded Head |

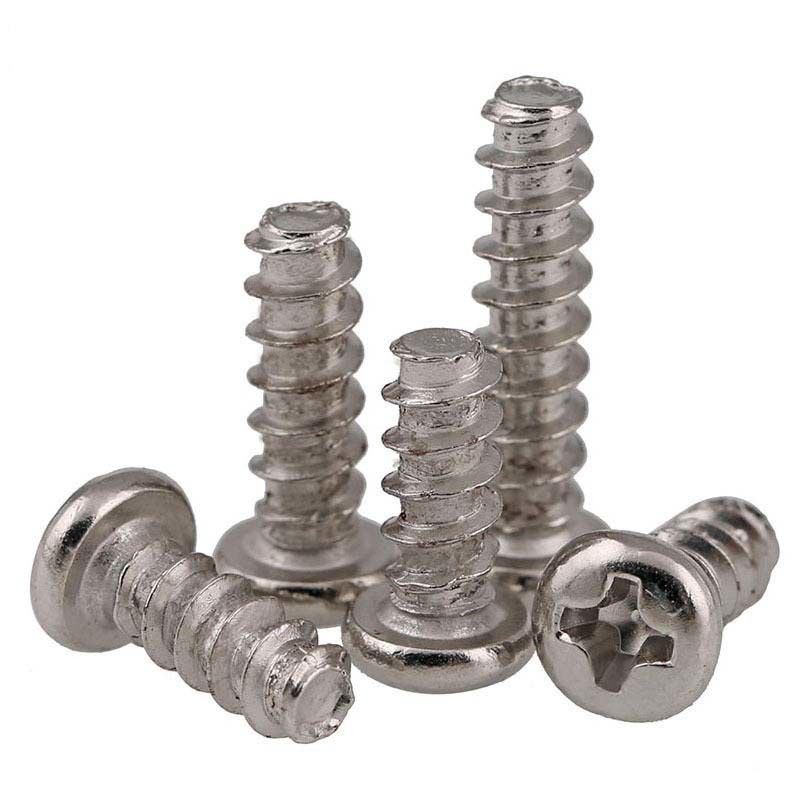

304 Stainless Steel Phillips Rounded Head Self Tapping Screws with Washer
Quick Details:
Product Other Name:304 Stainless Steel Phillips Rounded Head Self Tapping Screws with Washer
Material: 304 Stainless Steel, Alloy Steel, 316 Steel
Size: M2 , M2.6, M3 , M3.5, M4, M5 Length: 3 - 20mm
Usage Area: Furniture, automated machinery and equipment, construction, steel structure, lampsetc.
Products Description
1. Our products are sold to European, Australia, North America, Mid-east, and South East Asia and some African countries. UAE, DUBAI, France and other countries.
2. Size Range is Diameter:M2---M64 Length:5mm---400mm(Customized is acceptable)
Diameter:6#---2inch, Length:1/2inch---30inch(Customized is acceptable)
3. AISI 304 AISI 316 DIN7981 Standard Pan Head Sharp Point Self Tapping Metal Screws is always used on harden metal plate. Its material is harden
3. Stainless steel is generally divided into SS304 SS316 A2 A4. Stainless steel has strong corrosion resistance. Mechanical properties of stainless steel screws stronger than steel screws
4. 304 Stainless Steel Phillips Self Tapping Screws Of Flat Head Drilling produced by fully automatic process with advanced equipments, to ensure the processing density of copper.
304 Stainless Steel Phillips Rounded Head Self Tapping Screws with Washer Parameters and Drawing
| Size | Code | Flange Dia. | Head Ht. | Lg. |
| M2 x 4 | BZX.S080702-M2-4 | 3.3 | 1.4 | 4 |
| M2 x 5 | BZX.S080702-M2-5 | 3.3 | 1.4 | 5 |
| M2 x 8 | BZX.S080702-M2-8 | 3.3 | 1.4 | 8 |
| M2 x 10 | BZX.S080702-M2-10 | 3.3 | 1.4 | 10 |
| M2.2 x 5 | BZX.S080702-M2.2-5 | 3.7 | 1.6 | 5 |
| M2.2 x 6 | BZX.S080702-M2.2-6 | 3.7 | 1.6 | 6 |
| M2.2 x 8 | BZX.S080702-M2.2-8 | 3.7 | 1.6 | 8 |
| M2.2 x 10 | BZX.S080702-M2.2-10 | 3.7 | 1.6 | 10 |
| M2.2 x 12 | BZX.S080702-M2.2-12 | 3.7 | 1.6 | 12 |
| M2.6 x 5 | BZX.S080702-M2.6-5 | 4.2 | 1.6 | 5 |
| M2.6 x 6 | BZX.S080702-M2.6-6 | 4.2 | 1.6 | 6 |
| M2.6 x 8 | BZX.S080702-M2.6-8 | 4.2 | 1.6 | 8 |
| M2.6 x 10 | BZX.S080702-M2.6-10 | 4.2 | 1.6 | 10 |
| M2.6 x 12 | BZX.S080702-M2.6-12 | 4.2 | 1.6 | 12 |
| M3 x 4 | BZX.S080702-M3-4 | 5.3 | 1.9 | 4 |
| M3 x 5 | BZX.S080702-M3-5 | 5.3 | 1.9 | 5 |
| M3 x 6 | BZX.S080702-M3-6 | 5.3 | 1.9 | 6 |
| M3 x 8 | BZX.S080702-M3-8 | 5.3 | 1.9 | 8 |
| M3 x 10 | BZX.S080702-M3-10 | 5.3 | 1.9 | 10 |
| M3 x 12 | BZX.S080702-M3-12 | 5.3 | 1.9 | 12 |
| M3 x 14 | BZX.S080702-M3-14 | 5.3 | 1.9 | 14 |
| M3 x 16 | BZX.S080702-M3-16 | 5.3 | 1.9 | 16 |
| M3.5 x 8 | BZX.S080702-M3.5-8 | 6 | 2.25 | 8 |
| M3.5 x 10 | BZX.S080702-M3.5-10 | 6 | 2.25 | 10 |
| M3.5 x 12 | BZX.S080702-M3.5-12 | 6 | 2.25 | 12 |
| M3.5 x 16 | BZX.S080702-M3.5-16 | 6 | 2.25 | 16 |
| M3.5 x 20 | BZX.S080702-M3.5-20 | 6 | 2.25 | 20 |
| M4 x 6 | BZX.S080702-M4-6 | 6.7 | 2.5 | 6 |
| M4 x 8 | BZX.S080702-M4-8 | 6.7 | 2.5 | 8 |
| M4 x 10 | BZX.S080702-M4-10 | 6.7 | 2.5 | 10 |
| M4 x 12 | BZX.S080702-M4-12 | 6.7 | 2.5 | 12 |
| M4 x 16 | BZX.S080702-M4-16 | 6.7 | 2.5 | 16 |
| M4 x 20 | BZX.S080702-M4-20 | 6.7 | 2.5 | 20 |
| M5 x 8 | BZX.S080702-M5-8 | 9 | 3.5 | 8 |
| M5 x 10 | BZX.S080702-M5-10 | 9 | 3.5 | 10 |
| M5 x 12 | BZX.S080702-M5-12 | 9 | 3.5 | 12 |
| M5 x 16 | BZX.S080702-M5-16 | 9 | 3.5 | 16 |
| M5 x 20 | BZX.S080702-M5-20 | 9 | 3.5 | 20 |
Advantages
1. Our company have more than 15 years experience in the Stainless Steel Screws field.
2. We have Professional experienced engineers, sales and overseas engineers.
3. We have automatically generate machines produce the screws, Bolts, Nuts, Washers and so on .
4. Our high productivity can make sure your quickly delivery time.
