Product Details
Place of Origin: SHENZHEN CHINA
Brand Name: BOZEX
Certification: ISO9001,CE, SGS, BV
Model Number: BZX.B05686-M12
Payment & Shipping Terms
Minimum Order Quantity: 1000PCS
Packaging Details: box size: 20cm*20cm*10cm
Delivery Time: 5-8working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50Million pcs per day
Product Name: |
ISO 13918 Shear Connector Weld Stud Building Material C1018 Stainless Steel Hex Head Bolts |
Material: |
Steel |
Surface Treatment: |
Polish,phosphating,Nature |
Application: |
Steel Structure,bridge,building,airport,tower,pipeline,road,railway |
Finish: |
Plain, Zinc Plated(Clear/Blue/Yellow/Black), Black Oxide, Nickel, Chrome, H.D.G And Etc. |
Length: |
50mm-300mm |
Packging: |
Bulk In Cartons (25kg Max.)+wood Pallet Or According To Customer Special Demand |
Certificate: |
CE,ISO 9001,FPC BC1,SG S,BV,UKTC |
Product Name: |
ISO 13918 Shear Connector Weld Stud Building Material C1018 Stainless Steel Hex Head Bolts |
Material: |
Steel |
Surface Treatment: |
Polish,phosphating,Nature |
Application: |
Steel Structure,bridge,building,airport,tower,pipeline,road,railway |
Finish: |
Plain, Zinc Plated(Clear/Blue/Yellow/Black), Black Oxide, Nickel, Chrome, H.D.G And Etc. |
Length: |
50mm-300mm |
Packging: |
Bulk In Cartons (25kg Max.)+wood Pallet Or According To Customer Special Demand |
Certificate: |
CE,ISO 9001,FPC BC1,SG S,BV,UKTC |

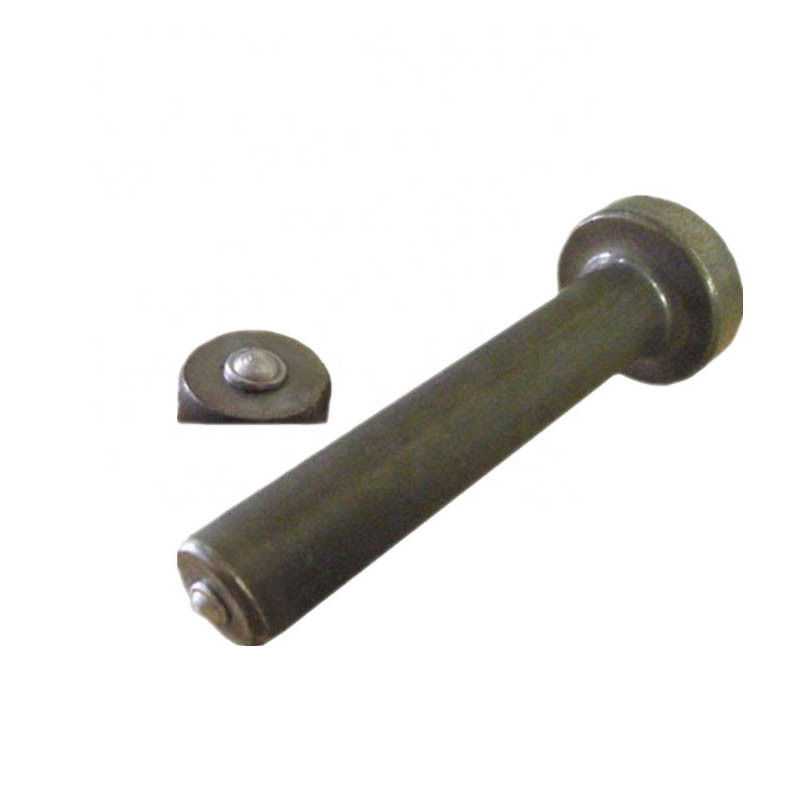

ISO 13918 Shear Connector Weld Stud Building Material C1018 Stainless Steel Hex Head Bolts
Quick Details:
Finish:Plain Material:Steel
Place of Origin:Guangdong, China
Brand Name:Bozex
Model Number:EN ISO 13918 SD1
Standard:EN ISO 13918 SD1
Application:Steel structure,bridge,building,airport,tower,pipeline,road,railway
Raw Material:SWRCH15A,SWRCH18A,S235J2+C450
Diameter:M13,M16,M19,M22,M25
Length:50mm-300mm
Surface Treatment:Polish,phosphating,Nature
Certificate:CE,ISO 9001,FPC BC1,SG S,BV,UKTC
Tensile strength:>=450Mpa Yield strength:>=350Mpa
Elongation:>=15%
1) Shear Connector Studs are designed to tie the concrete to the steel beams and to resist shear loadings between the concrete slab and steel beam in composite construction.
2) Shear studs are used in stud welding to secure steel framed buildings to create a shear connection between the steel and the concrete. We supply and fix all available sizes of welded shear studs for through deck and straight to steel welding.
3) All our products meet the current standards and specifications.
Mechanical Properties Of Shear Stud Connector | |||
Hot sell Standard | Tensile strength | Yield strength | Elongation |
EN ISO 13918 SD1 | ≥450 Mpa | ≥350 Mpa | ≥15% |
AWS D1.1 | ≥450 Mpa | ≥350 Mpa | ≥15% |
BS 5400 | ≥495 Mpa | ≥385 Mpa | ≥18% |
Chemical Component Of Material (%) | ||||||
Material | C | Si | Mn | P | S | Al |
SWRCH15A | 0.13-0.18 | ≤0.10 | 0.30-0.60 | ≤0.035 | ≤0.035 | ≥0.020 |
SWRCH18A | 0.15-0.20 | ≤0.10 | 0.60-0.90 | ≤0.030 | ≤0.035 | ≥0.020 |
Q345D | ≤0.18 | ≤0.50 | ≤1.70 | ≤0.030 | ≤0.025 | ≥0.015 |
Material |
1.StainlessSteel:SS201,SS303,SS304,SS316,SS410,SS420,2205,2507 2.Steel: 35CrMoA, 35CrMo, 30CrMoA, 30CrMo, 42Cr2MoA, 42Cr2Mo; |
Grade |
A2-70,A2-70, A4-70,A4-80,2205,2507 Class 4.8, 5.8, 6.8, 8.8, 10.9, 12.9 and etc.
|
Finish | Plain, Zinc Plated(Clear/Blue/Yellow/Black), Black oxide, Nickel, Chrome, H.D.G and etc. |
Thread | UNC,UNF,UEF,UN,UNS |
Standard | ISO, DIN, ANSI, JIS, BS and Non-standard |
Sample Service | Samples are all in free. |
Certificate | ISO9001,CE, SGS, BV |
Advantage | 1. Competitive price; 2. OEM service available |
Packing | Bulk in cartons (25kg Max.)+wood Pallet or according to customer special demand |
Payment terms | FOB, CIF, CFR, L/C, or others. |
Delivery method | by sea, by air or by express service |
Why Choose us?
1. Our company have more than 15 years experience in the Stainless Steel Screws field.
2. We have Professional experienced engineers, sales and overseas engineers.
3. We have automatically generate machines produce the screws, Bolts, Nuts, Washers and so on .
4. Our high productivity can make sure your quickly delivery time.
