Product Details
Place of Origin: Guangdong China
Brand Name: BOZEX
Certification: DIN, ISO, ANSI, GB, JIS
Model Number: BZX.S060421-M20-100
Payment & Shipping Terms
Minimum Order Quantity: 1000PCS
Packaging Details: 200pcs/box ;box size: 20cm*20cm*10cm
Delivery Time: 5-8working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50Million pcs per day
Product Name: |
Titanium Stainless Steel Hex Head Bolts |
Material: |
Titanium Stainless Steel |
Grade: |
10.9, 8.8, 4.8, A2-70, Gr5 |
Thread Size: |
M4, M5, M6, M8 , M10 , M12, M16, M20 |
Screw Length: |
10- 100mm |
Trade Term: |
EXW, FOB, CIF, DDP |
Product Name: |
Titanium Stainless Steel Hex Head Bolts |
Material: |
Titanium Stainless Steel |
Grade: |
10.9, 8.8, 4.8, A2-70, Gr5 |
Thread Size: |
M4, M5, M6, M8 , M10 , M12, M16, M20 |
Screw Length: |
10- 100mm |
Trade Term: |
EXW, FOB, CIF, DDP |

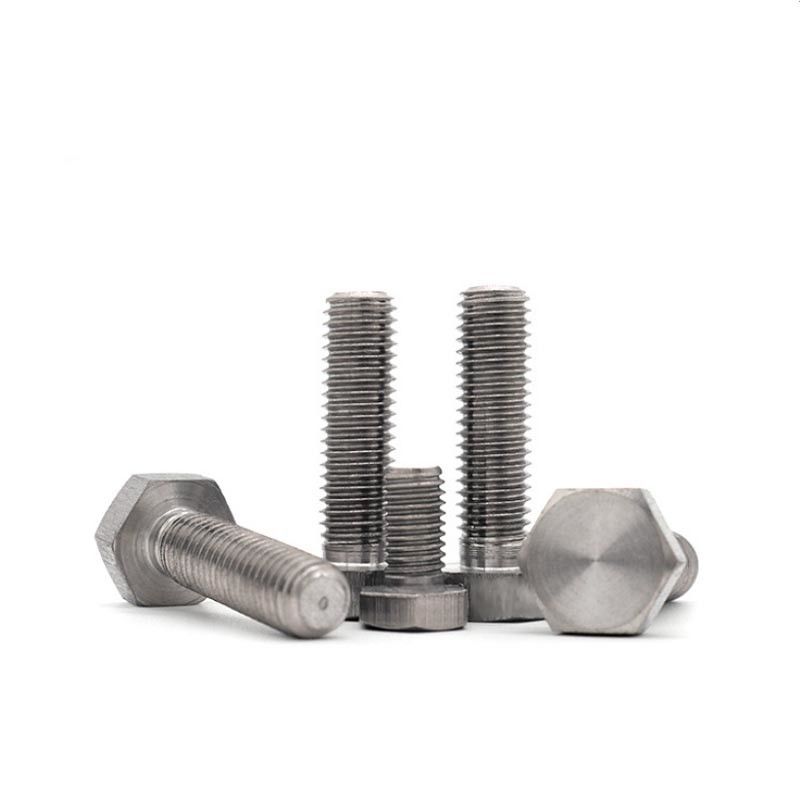

Titanium Stainless Steel Hex Head Bolts
Product Details:
Product Name: Titanium Stainless Steel Hex Head Bolts
Original Material: titanium
Thread Size: M4, M5, M6, M8 , M10 , M12, M16, M20
Finish: Zinc plated, Black Oxide, Natural Service: OEM, ODM, customized according to Drawing Trade term: FOB/EXW/CIF
Certificate: ISO, GB, DIN Function: Screws fastener for Machine, building, industry, lamps ect.
Specifications:
Titanium Stainless Steel Hex Head Bolts are screws that are mostly used in construction sites and other projects. The characteristic is that the axial surface of the screw body is formed with axially extending threads, and at least one notch is provided at the tail end of the screw body.
Titanium Stainless Steel Hex Head Bolts body, the axial surface of the screw body is formed with axially extending threads, and at least one notch is provided at the tail end of the screw body, and the notch above the notch extends to the screw body A chip flute is dug in the center, and the chip flute penetrates into the screw body and goes beyond the center line of the screw by a predetermined angle, so as to prevent chips from blocking the notch. It is mostly used in construction sites, hydroelectric power station power systems and other fields
Classification
1. According to the force mode of the connection, there are ordinary and reamed holes. The bolts used for reaming holes should be matched with the size of the hole and used when subjected to lateral force.
2. According to the shape of the Titanium Stainless Steel Hex Head Bolts, there are hexagonal heads, round heads, square heads, countersunk heads, etc.Generally, countersunk heads are used in places where the surface is required to be smooth and no protrusions after the connection, because the countersunk head can be screwed into the part. The head can also be screwed into the part. The tightening force of the square head can be larger, but the size is large. The hexagonal head is the most commonly used.
Titanium Stainless Steel Hex Head Bolts Drawing and Parameter
Size | Code | Head Wd. | Head Ht. | Lg. |
M4 x 10 | BZX.S060421-M4-10 | 7 | 3 | 10 |
M4 x 15 | BZX.S060421-M4-15 | 7 | 3 | 15 |
M4 x 20 | BZX.S060421-M4-20 | 7 | 3 | 20 |
M4 x 25 | BZX.S060421-M4-25 | 7 | 3 | 25 |
M4 x 30 | BZX.S060421-M4-30 | 7 | 3 | 30 |
M4 x 35 | BZX.S060421-M4-35 | 7 | 3 | 35 |
M4 x 40 | BZX.S060421-M4-40 | 7 | 3 | 40 |
M4 x 45 | BZX.S060421-M4-45 | 7 | 3 | 45 |
M4 x 50 | BZX.S060421-M4-50 | 7 | 3 | 50 |
M4 x 55 | BZX.S060421-M4-55 | 7 | 3 | 55 |
M4 x 60 | BZX.S060421-M4-60 | 7 | 3 | 60 |
M5 x 10 | BZX.S060421-M5-10 | 8 | 3.74 | 10 |
M5 x 15 | BZX.S060421-M5-15 | 8 | 3.74 | 15 |
M5 x 20 | BZX.S060421-M5-20 | 8 | 3.74 | 20 |
M5 x 25 | BZX.S060421-M5-25 | 8 | 3.74 | 25 |
M5 x 30 | BZX.S060421-M5-30 | 8 | 3.74 | 30 |
M5 x 35 | BZX.S060421-M5-35 | 8 | 3.74 | 35 |
M5 x 40 | BZX.S060421-M5-40 | 8 | 3.74 | 40 |
M5 x 45 | BZX.S060421-M5-45 | 8 | 3.74 | 45 |
M5 x 50 | BZX.S060421-M5-50 | 8 | 3.74 | 50 |
M5 x 55 | BZX.S060421-M5-55 | 8 | 3.74 | 55 |
M5 x 60 | BZX.S060421-M5-60 | 8 | 3.74 | 60 |
M5 x 70 | BZX.S060421-M5-70 | 8 | 3.74 | 70 |
M5 x 80 | BZX.S060421-M5-80 | 8 | 3.74 | 80 |
M10 x 20 | BZX.S060421-M10-20 | 17 | 6.69 | 20 |
M10 x 25 | BZX.S060421-M10-25 | 17 | 6.69 | 25 |
M10 x 30 | BZX.S060421-M10-30 | 17 | 6.69 | 30 |
M10 x 35 | BZX.S060421-M10-35 | 17 | 6.69 | 35 |
M10 x 40 | BZX.S060421-M10-40 | 17 | 6.69 | 40 |
M10 x 45 | BZX.S060421-M10-45 | 17 | 6.69 | 45 |
M10 x 50 | BZX.S060421-M10-50 | 17 | 6.69 | 50 |
M10 x 55 | BZX.S060421-M10-55 | 17 | 6.69 | 55 |
M10 x 60 | BZX.S060421-M10-60 | 17 | 6.69 | 60 |
M10 x 70 | BZX.S060421-M10-70 | 17 | 6.69 | 70 |
M10 x 80 | BZX.S060421-M10-80 | 17 | 6.69 | 80 |
M10 x 90 | BZX.S060421-M10-90 | 17 | 6.69 | 90 |
M10 x 100 | BZX.S060421-M10-100 | 17 | 6.69 | 100 |
M10 x 110 | BZX.S060421-M10-110 | 17 | 6.69 | 110 |
M10 x 120 | BZX.S060421-M10-120 | 17 | 6.69 | 120 |
M20 x 20 | BZX.S060421-M20-20 | 30 | 12.85 | 30 |
M20 x 30 | BZX.S060421-M20-30 | 30 | 12.85 | 35 |
M20 x 35 | BZX.S060421-M20-35 | 30 | 12.85 | 35 |
M20 x 40 | BZX.S060421-M20-40 | 30 | 12.85 | 40 |
M20 x 45 | BZX.S060421-M20-45 | 30 | 12.85 | 45 |
M20 x 50 | BZX.S060421-M20-50 | 30 | 12.85 | 50 |
M20 x 55 | BZX.S060421-M20-55 | 30 | 12.85 | 55 |
M20 x 60 | BZX.S060421-M20-60 | 30 | 12.85 | 60 |
M20 x 65 | BZX.S060421-M20-65 | 30 | 12.85 | 65 |
M20 x 70 | BZX.S060421-M20-70 | 30 | 12.85 | 70 |
M20 x 75 | BZX.S060421-M20-75 | 30 | 12.85 | 75 |
M20 x 80 | BZX.S060421-M20-80 | 30 | 12.85 | 80 |
M20 x 90 | BZX.S060421-M20-90 | 30 | 12.85 | 90 |
M20 x 100 | BZX.S060421-M20-100 | 30 | 12.85 | 100 |
Advantages
1.Exact forging standard of knife edge and high hardness of surface make it easy to drill.
2.Using the advanced technology to control the core hardness, avoiding rupture effectivity,
3. Quick self drilling , drilling , tapping, locking the oncce, and combining with the strength.
4. Save contruction time, improve working efficency.
5. Technology, professional manufacturing , quality assurance.
