Product Details
Place of Origin: SHENZHEN CHINA
Brand Name: BOZEX
Certification: ISO9001, DIN7982 , DIN7983
Model Number: BZX.S1201-M8-12
Payment & Shipping Terms
Minimum Order Quantity: 1000PCS
Packaging Details: box size: 20cm*20cm*10cm
Delivery Time: 5-8working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50Million pcs per day
Key Words: |
304 Stainless Steel Weld Head Screws |
Original Material: |
Alloy Steel, 304 Stainless Steel, Carbon Steel |
Application: |
Electrical Equipment, Cars |
Screw Type: |
Thumb |
Color: |
Weld Head Type |
Port: |
Shenzhen, Ningbo, Shanghai |
Key Words: |
304 Stainless Steel Weld Head Screws |
Original Material: |
Alloy Steel, 304 Stainless Steel, Carbon Steel |
Application: |
Electrical Equipment, Cars |
Screw Type: |
Thumb |
Color: |
Weld Head Type |
Port: |
Shenzhen, Ningbo, Shanghai |

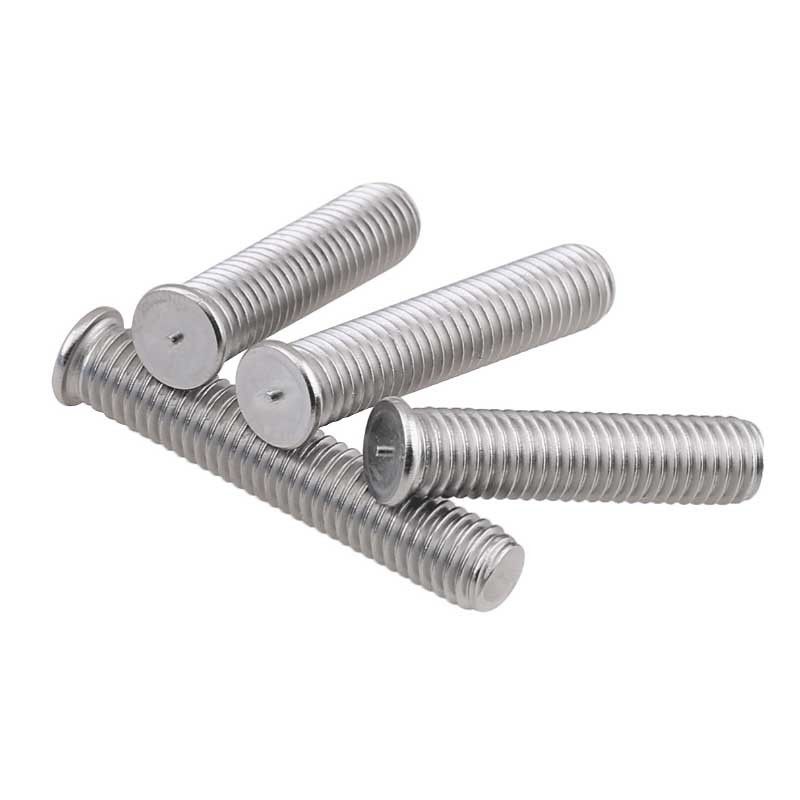

304 Stainless Steel Weld Head Screws Of Size M8 For Automation Equipment
Quick Details
Name: 304 Stainless Steel Weld Head Screws
Material: Alloy, 304 Stainless Steel, 316 Stainless Steel, 201 Stainless Steel
Screw Size: M5, M6, M8 Length : 10 - 50mm
Service: OEM, ODM Trade term: FOB/EXW/CIF
Shipping Way: Air, Boat, Train, FEDEX, UPS, DHL
Packaging: Inner Small box + carton box + Pallet
Products Description
304 Stainless Steel Weld Head Screws, also known as flat machine screws, flat head screws, their head is a 90-degree cone, similar to common wood screws, the head has a tool tightening groove, a flat, cross, hexagon, etc. .
Screws play the role of connecting two or more objects. They are indispensable in daily life or industrial manufacturing. There are countersunk head bolts (slotted) and countersunk head bolts (with tenon).
304 Stainless Steel Weld Head Screws are mostly used after installation, the surface of the parts can not be raised, and the fastened parts have two thicknesses, the so-called thick, which means that the thickness of the fastened part is greater than the thickness of the head of the countersunk screw Thickness. After the screw is tightened, there is still a part of the screw thread that does not enter the threaded hole. In this case, the countersunk screw can definitely be tightened.
304 Stainless Steel Weld Head Screws Drawing and Parameter
| Size | Code | Dia. | H. | Lg. |
| M3 x 30 | BZX.S1201-M3-30 | 4.65 | 1.3 | 30 |
| M3 x 25 | BZX.S1201-M3-25 | 4.65 | 1.3 | 25 |
| M3 x 20 | BZX.S1201-M3-20 | 4.65 | 1.3 | 20 |
| M3 x 16 | BZX.S1201-M3-16 | 4.65 | 1.3 | 16 |
| M3 x 12 | BZX.S1201-M3-12 | 4.65 | 1.3 | 12 |
| M3 x 10 | BZX.S1201-M3-10 | 4.65 | 1.3 | 10 |
| M3 x 8 | BZX.S1201-M3-8 | 4.65 | 1.3 | 8 |
| M3 x 6 | BZX.S1201-M3-6 | 4.65 | 1.3 | 6 |
| M4 x 40 | BZX.S1201-M4-45 | 5.65 | 1.3 | 40 |
| M4 x 35 | BZX.S1201-M4-35 | 5.65 | 1.3 | 35 |
| M4 x 30 | BZX.S1201-M4-30 | 5.65 | 1.3 | 30 |
| M4 x 25 | BZX.S1201-M4-25 | 5.65 | 1.3 | 25 |
| M4 x 20 | BZX.S1201-M4-20 | 5.65 | 1.3 | 20 |
| M4 x 16 | BZX.S1201-M4-16 | 5.65 | 1.3 | 16 |
| M4 x 12 | BZX.S1201-M4-12 | 5.65 | 1.3 | 12 |
| M4 x 10 | BZX.S1201-M4-10 | 5.65 | 1.3 | 10 |
| M4 x 8 | BZX.S1201-M4-8 | 5.65 | 1.3 | 8 |
| M4 x 6 | BZX.S1201-M4-6 | 5.65 | 1.3 | 6 |
| M5 x 50 | BZX.S1201-M5-50 | 6.68 | 1.4 | 50 |
| M5 x 40 | BZX.S1201-M5-45 | 6.68 | 1.4 | 40 |
| M5 x 35 | BZX.S1201-M5-35 | 6.68 | 1.4 | 35 |
| M5 x 30 | BZX.S1201-M5-30 | 6.68 | 1.4 | 30 |
| M5 x 25 | BZX.S1201-M5-25 | 6.68 | 1.4 | 25 |
| M5 x 20 | BZX.S1201-M5-20 | 6.68 | 1.4 | 20 |
| M5 x 16 | BZX.S1201-M5-16 | 6.68 | 1.4 | 16 |
| M5 x 12 | BZX.S1201-M5-12 | 6.68 | 1.4 | 12 |
| M5 x 10 | BZX.S1201-M5-10 | 6.68 | 1.4 | 10 |
| M5 x 8 | BZX.S1201-M5-8 | 6.68 | 1.4 | 8 |
| M6 x 50 | BZX.S1201-M6-50 | 7.68 | 1.4 | 50 |
| M6 x 45 | BZX.S1201-M6-45 | 7.68 | 1.4 | 45 |
| M6 x 40 | BZX.S1201-M6-40 | 7.68 | 1.4 | 40 |
| M6 x 35 | BZX.S1201-M6-35 | 7.68 | 1.4 | 35 |
| M6 x 30 | BZX.S1201-M6-30 | 7.68 | 1.4 | 30 |
| M6 x 25 | BZX.S1201-M6-25 | 7.68 | 1.4 | 25 |
| M6 x 20 | BZX.S1201-M6-20 | 7.68 | 1.4 | 20 |
| M6 x 16 | BZX.S1201-M6-16 | 7.68 | 1.4 | 16 |
| M6 x 12 | BZX.S1201-M6-12 | 7.68 | 1.4 | 12 |
| M6 x 10 | BZX.S1201-M6-10 | 7.68 | 1.4 | 10 |
| M6 x 8 | BZX.S1201-M6-8 | 7.68 | 1.4 | 8 |
| M8 x 50 | BZX.S1201-M8-50 | 9.72 | 1.5 | 50 |
| M8 x 45 | BZX.S1201-M8-45 | 9.72 | 1.5 | 45 |
| M8 x 40 | BZX.S1201-M8-40 | 9.72 | 1.5 | 40 |
| M8 x 35 | BZX.S1201-M8-35 | 9.72 | 1.5 | 35 |
| M8 x 30 | BZX.S1201-M8-30 | 9.72 | 1.5 | 30 |
| M8 x 25 | BZX.S1201-M8-25 | 9.72 | 1.5 | 25 |
| M8 x 20 | BZX.S1201-M8-20 | 9.72 | 1.5 | 20 |
| M8 x 16 | BZX.S1201-M8-16 | 9.72 | 1.5 | 16 |
| M8 x 12 | BZX.S1201-M8-12 | 9.72 | 1.5 | 12 |
