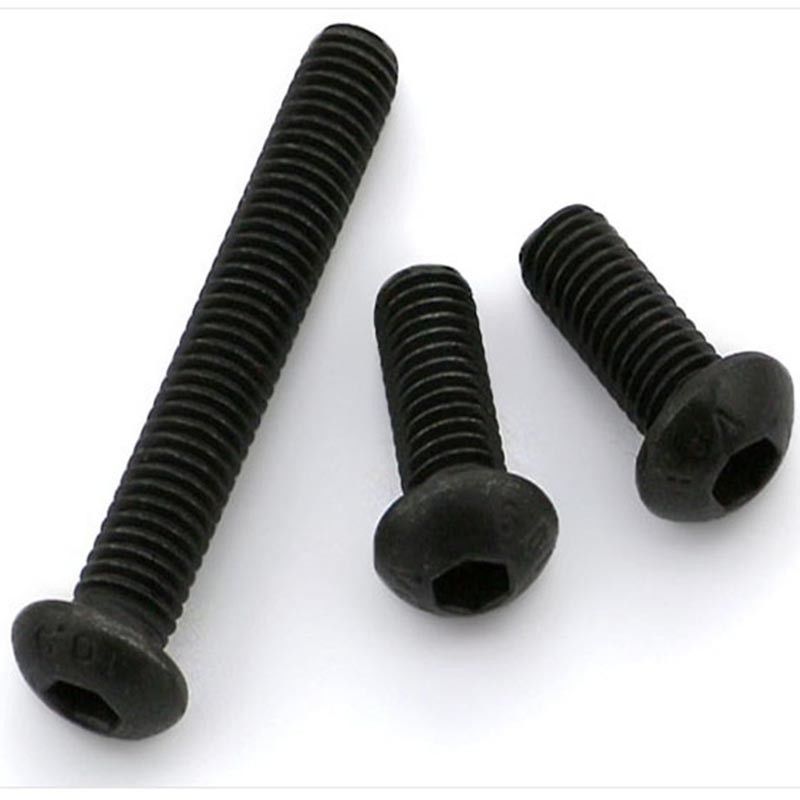

Grade 12.9 Alloy Steel Screws Button Head Hex Drive Screws DIN7983 ANSI

Product Details

Place of Origin: SHENZHEN CHINA

Brand Name: BOZEX

Certification: ISO9001, DIN7982 , DIN7983

Model Number: BZX.S090503-M3-30

Payment & Shipping Terms

Minimum Order Quantity: 1000PCS

Packaging Details: box size: 20cm*20cm*10cm

Delivery Time: 5-8working days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 50Million pcs per day

Get Best Price
Highlight:

ANSI button head hex drive screws

,

DIN7983 Alloy Steel Screws

,

ANSI Grade 12.9 Alloy Steel Screws

Other Name:
Grade12.9 Alloy Steel Button Head Hex Drive Screws
Material:
Alloy Steel, 304 Stainless Steel, Carbon Steel
Usage Area:
Lamps, Building, Electrical Equipment, Cars
Standard:
DIN, ISO, ANSI, GB, JIS
Thread Size:
M3, M4, M5, M6, M8
Head Type:
Button Hex Head
Color:
Black Oxide
Port:
Shanghai, Shenzhen, Ningbo
Other Name:
Grade12.9 Alloy Steel Button Head Hex Drive Screws
Material:
Alloy Steel, 304 Stainless Steel, Carbon Steel
Usage Area:
Lamps, Building, Electrical Equipment, Cars
Standard:
DIN, ISO, ANSI, GB, JIS
Thread Size:
M3, M4, M5, M6, M8
Head Type:
Button Hex Head
Color:
Black Oxide
Port:
Shanghai, Shenzhen, Ningbo
Grade 12.9 Alloy Steel Screws Button Head Hex Drive Screws DIN7983 ANSI

Grade12.9 Alloy Steel Button Head Hex Drive Screws

Quick Details
Name: Grade12.9 Alloy Steel Button Head Hex Drive Screws
Material: Brass, 304 Stainless Steel, 316 Stainless Steel, 201 Stainless Steel
Screw Size: M3, M4, M5, M6, M8    Length : 6 - 60mm
Service: OEM, ODM Trade term: FOB/EXW/CIF
Shipping Way: Air, Boat, Train, FEDEX, UPS, DHL
Packaging: Inner Small box + carton box + Pallet

Products Description

Grade12.9 Alloy Steel Button Head Hex Drive Screws are mostly used after installation, the surface of the parts can not be raised, and the fastened parts have two thicknesses, the so-called thick, which means that the thickness of the fastened part is greater than the thickness of the head of the countersunk screw Thickness. After the screw is tightened, there is still a part of the screw thread that does not enter the threaded hole. In this case, the countersunk screw can definitely be tightened. There is usually another case, that is, the thickness of the fastened parts is less than the height of the head of the countersunk head screw, which is common in sheet metal parts in mechanical equipment, such as the connection of the hinge of the chassis and the door and the box; the sheet metal of the equipment The connection between the cover and the equipment, etc. Due to the small thickness of the part, the screw through hole of the fastened sheet metal part has become a conical hole completely. In this case, when the countersunk screw is tightened, the screw head is not a conical surface to compress the sheet metal part. , But the bottom of the screw head and the top of the threaded hole are squeezed. Although the screw feels that the screw is tightened, the sheet metal part is stuck instead of being pressed. In this case, although the screw feels that the screw is tightened, the sheet metal The gold piece is indeed not tightened. This is a very common situation.

               Grade12.9 Alloy Steel Button Head Hex Drive Screws Drawing and Parameter
Grade 12.9 Alloy Steel Screws Button Head Hex Drive Screws DIN7983 ANSI 0

SizeCodeDia.Lg.Ht.
M3 x 6BZX.S090503-M3-65.761.65
M3 x 8BZX.S090503-M3-85.781.65
M3 x 10BZX.S090503-M3-105.7101.65
M3 x 12BZX.S090503-M3-125.7121.65
M3 x 16BZX.S090503-M3-165.7161.65
M3 x 20BZX.S090503-M3-205.7201.65
M3 x 25BZX.S090503-M3-255.7251.65
M3 x 30BZX.S090503-M3-305.7301.65
M4 x 6BZX.S090503-M4-67.662.2
M4 x 8BZX.S090503-M4-87.682.2
M4 x 10BZX.S090503-M4-107.6102.2
M4 x 12BZX.S090503-M4-127.6122.2
M4 x 16BZX.S090503-M4-167.6162.2
M4 x 20BZX.S090503-M4-207.6202.2
M4 x 25BZX.S090503-M4-257.6252.2
M4 x 30BZX.S090503-M4-307.6302.2
M5 x 8BZX.S090503-M5-89.582.75
M5 x 10BZX.S090503-M5-109.5102.75
M5 x 12BZX.S090503-M5-129.5122.75
M5 x 16BZX.S090503-M5-169.5162.75
M5 x 20BZX.S090503-M5-209.5202.75
M5 x 25BZX.S090503-M5-259.5252.75
M5 x 30BZX.S090503-M5-309.5302.75
M5 x 35BZX.S090503-M5-359.5352.75
M5 x 40BZX.S090503-M5-409.5402.75
M6 x 8BZX.S090503-M6-810.583.3
M6 x 10BZX.S090503-M6-1010.5103.3
M6 x 12BZX.S090503-M6-1210.5123.3
M6 x 16BZX.S090503-M6-1610.5163.3
M6 x 20BZX.S090503-M6-2010.5203.3
M6 x 25BZX.S090503-M6-2510.5253.3
M6 x 30BZX.S090503-M6-3010.5303.3
M6 x 35BZX.S090503-M6-3510.5353.3
M6 x 40BZX.S090503-M6-4010.5403.3
M6 x 45BZX.S090503-M6-4510.5453.3
M6 x 50BZX.S090503-M6-5010.5503.3
M8 x 10BZX.S090504-M8-1014104.4
M8 x 12BZX.S090504-M8-1214124.4
M8 x 16BZX.S090504-M8-1614164.4
M8 x 20BZX.S090504-M8-2014204.4
M8 x 25BZX.S090504-M8-2514254.4
M8 x 30BZX.S090504-M8-3014304.4
M8 x 35BZX.S090504-M8-3514354.4
M8 x 40BZX.S090504-M8-4014404.4
M8 x 45BZX.S090504-M8-4514454.4
M8 x 50BZX.S090504-M8-5014504.4
M8 x 55BZX.S090504-M8-5514554.4
M8 x 60BZX.S090504-M8-6014604.4
