Product Details
Place of Origin: SHENZHEN Dongguang CHINA
Brand Name: BOZEX
Certification: ISO9001 , DIN
Model Number: BZX.S060419-M10-90
Payment & Shipping Terms
Minimum Order Quantity: 1000PCS
Packaging Details: 200pcs/box ;box size: 20cm*20cm*10cm
Delivery Time: 5-8working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50Million pcs per day
Name: |
Size M10 Stainless Steel Brass Hex Head Bolts |
Original Material: |
Brass Aluminum, 304 Stainless Steel, 316 Stainless Steel |
Usage: |
Industry Machine, Lamps, Buildings Etc |
Thread Size: |
M4, M5, M6, M8 , M10 , M12 |
Screw Length: |
6- 100mm |
Shipping Way: |
FEDEX, DHL, UPS, Sea Boat, Train |
Name: |
Size M10 Stainless Steel Brass Hex Head Bolts |
Original Material: |
Brass Aluminum, 304 Stainless Steel, 316 Stainless Steel |
Usage: |
Industry Machine, Lamps, Buildings Etc |
Thread Size: |
M4, M5, M6, M8 , M10 , M12 |
Screw Length: |
6- 100mm |
Shipping Way: |
FEDEX, DHL, UPS, Sea Boat, Train |

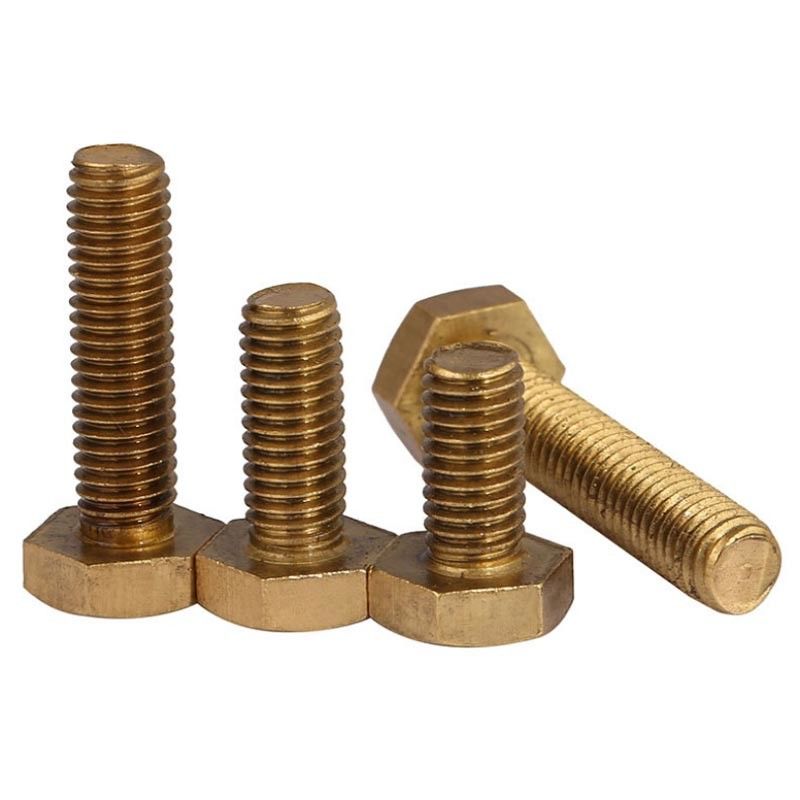

Size M12 Stainless Steel Brass Hex Head Bolts
Product Quick Details:
Product Name: Stainless Steel Brass Hex Head Bolts
Original Material: Brass Aluminum, 304 Stainless Steel
Thread Size: M4, M5, M6, M8 , M10 , M12 Grade 4.8
Screw Length: 6 - 100mm Service: OEM, ODM, customized according to Drawing Trade term: FOB/EXW/CIF
Certificate: ISO, GB, DIN Function: Screws fastener for Machine, building, industry, lamps ect.
Specifications:
Stainless Steel Brass Hex Bolts, 304, 316, 316L, DIN931 Set Screws
18-8 Stainless Steel Brass Hex Bolt is used to fixing component,industrial and construction fasteners.
316 stainless steel provides the strongest corrosion resistance and is non magnetic.
Hex Bolts in Aluminum Hex Bolts are used for salt water and water treatment applications, food processing prep area equipment. Used on boats, docks, oil gas refining plants for direct use in salt water .
Stainless Steel Brass Hex Head Bolts Classification
1. According to the shape of the head, Stainless Steel Brass Hex Head Bolts, round heads, square heads, countersunk heads, etc.Generally, countersunk heads are used in places where the surface is required to be smooth and no protrusions after the connection, because the countersunk head can be screwed into the part. The head can also be screwed into the part. The tightening force of the square head can be larger, but the size is large. The hexagonal head is the most commonly used.
In addition, Stainless Steel Brass Hex Head Bolts, in order to meet the need of locking after installation, there are holes on the head and holes on the rod. These holes can prevent the bolt from loosening when it is vibrated.
Some bolts have no threaded polished rods to be thin, called thin waist bolts. This kind of bolts is conducive to the connection of variable forces
Stainless Steel Brass Hex Head Bolts Drawing and Parameter
Size | Code | Head Wd. | Head Ht. | Lg. |
M4 x 6 | BZX.S060419-M4-10 | 7 | 3 | 6 |
M4 x 8 | BZX.S060419-M4-10 | 7 | 3 | 8 |
M4 x 10 | BZX.S060419-M4-10 | 7 | 3 | 10 |
M4 x 12 | BZX.S060419-M4-12 | 7 | 3 | 12 |
M4 x 16 | BZX.S060419-M4-16 | 7 | 3 | 16 |
M4 x 20 | BZX.S060419-M4-20 | 7 | 3 | 20 |
M4 x 25 | BZX.S060419-M4-25 | 7 | 3 | 25 |
M4 x 30 | BZX.S060419-M4-30 | 7 | 3 | 30 |
M5 x 10 | BZX.S060419-M6-10 | 8 | 3.74 | 10 |
M5 x 12 | BZX.S060419-M6-12 | 8 | 3.74 | 12 |
M5 x 16 | BZX.S060419-M6-16 | 8 | 3.74 | 16 |
M5 x 20 | BZX.S060419-M6-20 | 8 | 3.74 | 20 |
M5 x 25 | BZX.S060419-M6-25 | 8 | 3.74 | 25 |
M5 x 30 | BZX.S060419-M6-30 | 8 | 3.74 | 30 |
M5 x 35 | BZX.S060419-M6-35 | 8 | 3.74 | 35 |
M5 x 40 | BZX.S060419-M6-40 | 8 | 3.74 | 40 |
M5 x 45 | BZX.S060419-M6-45 | 8 | 3.74 | 45 |
M5 x 50 | BZX.S060419-M6-50 | 8 | 3.74 | 50 |
M6 x 10 | BZX.S060419-M6-10 | 10 | 4.24 | 10 |
M6 x 12 | BZX.S060419-M6-12 | 10 | 4.24 | 12 |
M6 x 16 | BZX.S060419-M6-16 | 10 | 4.24 | 16 |
M6 x 20 | BZX.S060419-M6-20 | 10 | 4.24 | 20 |
M6 x 25 | BZX.S060419-M6-25 | 10 | 4.24 | 25 |
M6 x 30 | BZX.S060419-M6-30 | 10 | 4.24 | 30 |
M6 x 35 | BZX.S060419-M6-35 | 10 | 4.24 | 35 |
M6 x 40 | BZX.S060419-M6-40 | 10 | 4.24 | 40 |
M6 x 45 | BZX.S060419-M6-45 | 10 | 4.24 | 45 |
M6 x 50 | BZX.S060419-M6-50 | 10 | 4.24 | 50 |
M6 x 55 | BZX.S060419-M6-55 | 10 | 4.24 | 55 |
M6 x 60 | BZX.S060419-M6-60 | 10 | 4.24 | 60 |
M8 x 16 | BZX.S060419-M8-16 | 13 | 5.54 | 16 |
M8 x 20 | BZX.S060419-M8-20 | 13 | 5.54 | 20 |
M8 x 25 | BZX.S060419-M8-25 | 13 | 5.54 | 25 |
M8 x 30 | BZX.S060419-M8-30 | 13 | 5.54 | 30 |
M8 x 35 | BZX.S060419-M8-35 | 13 | 5.54 | 35 |
M8 x 40 | BZX.S060419-M8-40 | 13 | 5.54 | 40 |
M8 x 45 | BZX.S060419-M8-45 | 13 | 5.54 | 45 |
M8 x 50 | BZX.S060419-M8-50 | 13 | 5.54 | 50 |
M8 x 55 | BZX.S060419-M8-55 | 13 | 5.54 | 55 |
M8 x 60 | BZX.S060419-M8-60 | 13 | 5.54 | 60 |
M8 x 70 | BZX.S060419-M8-70 | 13 | 5.54 | 70 |
M8 x 80 | BZX.S060419-M8-80 | 13 | 5.54 | 80 |
M10 x 20 | BZX.S060419-M10-20 | 17 | 6.69 | 20 |
M10 x 25 | BZX.S060419-M10-25 | 17 | 6.69 | 25 |
M10 x 30 | BZX.S060419-M10-30 | 17 | 6.69 | 30 |
M10 x 35 | BZX.S060419-M10-35 | 17 | 6.69 | 35 |
M10 x 40 | BZX.S060419-M10-40 | 17 | 6.69 | 40 |
M10 x 45 | BZX.S060419-M10-45 | 17 | 6.69 | 45 |
M10 x 50 | BZX.S060419-M10-50 | 17 | 6.69 | 50 |
M10 x 55 | BZX.S060419-M10-55 | 17 | 6.69 | 55 |
M10 x 60 | BZX.S060419-M10-60 | 17 | 6.69 | 60 |
M10 x 70 | BZX.S060419-M10-70 | 17 | 6.69 | 70 |
M10 x 80 | BZX.S060419-M10-80 | 17 | 6.69 | 80 |
M10 x 90 | BZX.S060419-M10-90 | 17 | 6.69 | 90 |
M12 x 25 | BZX.S060419-M12-25 | 19 | 7.79 | 25 |
M12 x 30 | BZX.S060419-M12-30 | 19 | 7.79 | 30 |
M12 x 35 | BZX.S060419-M12-35 | 19 | 7.79 | 35 |
M12 x 40 | BZX.S060419-M12-40 | 19 | 7.79 | 40 |
M12 x 45 | BZX.S060419-M12-45 | 19 | 7.79 | 45 |
M12 x 50 | BZX.S060419-M12-50 | 19 | 7.79 | 50 |
M12 x 55 | BZX.S060419-M12-55 | 19 | 7.79 | 55 |
M12 x 60 | BZX.S060419-M12-60 | 19 | 7.79 | 60 |
M12 x 70 | BZX.S060419-M12-70 | 19 | 7.79 | 70 |
M12 x 80 | BZX.S060419-M12-80 | 19 | 7.79 | 80 |
M12 x 90 | BZX.S060419-M12-90 | 19 | 7.79 | 90 |
M12 x 100 | BZX.S060419-M12-100 | 19 | 7.79 | 100 |
