Product Details
Place of Origin: Shenzhen Guangdong China
Brand Name: BOZEX
Certification: ISO9001 DIN
Model Number: BZX.S080402-M4.8-38
Payment & Shipping Terms
Minimum Order Quantity: 1000PCS
Packaging Details: box size: 20cm*20cm*10cm
Delivery Time: 5-8working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50Million pcs per day
Keywords: |
304 Stainless Steel Tamper Resistant Torx Rounded Head Self Tapping Screws |
Original Material: |
Alloy Steel, 304 Stainless Steel, 316 Stainless Steel |
Function: |
Fastener |
Application: |
Various Machine Tools And Equipment, Industry Machine |
Thread Size(T): |
M2.5 , M3.5, M3.9 , M4.8 |
Screw Length: |
6.5 - 48mm |
Feature: |
Natural, Zinc Plated |
Thread: |
Self Tapping |
Keywords: |
304 Stainless Steel Tamper Resistant Torx Rounded Head Self Tapping Screws |
Original Material: |
Alloy Steel, 304 Stainless Steel, 316 Stainless Steel |
Function: |
Fastener |
Application: |
Various Machine Tools And Equipment, Industry Machine |
Thread Size(T): |
M2.5 , M3.5, M3.9 , M4.8 |
Screw Length: |
6.5 - 48mm |
Feature: |
Natural, Zinc Plated |
Thread: |
Self Tapping |

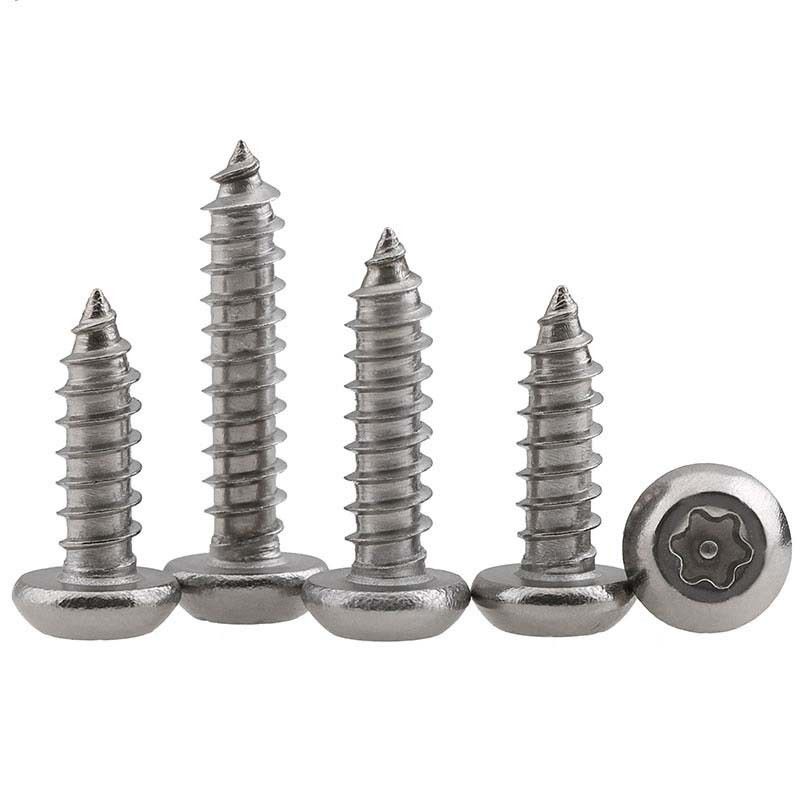

304 Stainless Steel Tamper Resistant Torx Rounded Head Self Tapping Screws
Product Quick Details:
Product Name:304 Stainless Steel Tamper Resistant Torx Rounded Head Self Tapping Screws
Original Material: 304 Stainless Steel, 316 Stainless Steel
Size: M2.5 , M3.5, M3.9 , M4.8 Screw Length: 6.5 - 48mm
Usage: Lamps, Building, Railway etc.
Products Description
1. 304 Stainless Steel Tamper Resistant Torx Rounded Head Self Tapping Screws , do not require a hole to be drilled prior to use which cuts down on time needed to drill and fasten materials by combining them. These have the same heads as traditional bolts and screws, but the fastener is designed with a drill flute on the tip to drill/fasten at the same time. Useful for quick sheet metal fastening and other applications like metal to metal or wood to metal.
2. 304 Stainless Steel Tamper Resistant Torx Rounded Head Self Tapping Screws Pan heads are slightly rounded with short vertical sides. Phillips drives are + shaped for a phillips screw driver.
3. 304 Stainless Steel Tamper Resistant Torx Rounded Head Self Tapping Screws produced by fully automatic process with advanced equipments, to ensure the processing density of copper.
304 Stainless Steel Tamper Resistant Torx Rounded Head Self Tapping Screws Parameters and Drawing
| Size | Code | Dia. | Ht. | Lg. |
| M2.9 x 6.5 | BZX.S080402-M2.9-6.5 | 5.5 | 2 | 6.5 |
| M2.9 x 9.5 | BZX.S080402-M2.9-9.5 | 5.5 | 2 | 9.5 |
| M2.9 x 13 | BZX.S080402-M2.9-13 | 5.5 | 2 | 13 |
| M2.9 x 16 | BZX.S080402-M2.9-16 | 5.5 | 2 | 16 |
| M2.9 x 19 | BZX.S080402-M2.9-19 | 5.5 | 2 | 19 |
| M2.9 x 25 | BZX.S080402-M2.9-25 | 5.5 | 2 | 25 |
| M3.5 x 9.5 | BZX.S080402-M3.5-9.5 | 6.7 | 2.4 | 9.5 |
| M3.5 x 13 | BZX.S080402-M3.5-13 | 6.7 | 2.4 | 13 |
| M3.5 x 16 | BZX.S080402-M3.5-16 | 6.7 | 2.4 | 16 |
| M3.5 x 19 | BZX.S080402-M3.5-19 | 6.7 | 2.4 | 19 |
| M3.5 x 25 | BZX.S080402-M3.5-25 | 6.7 | 2.4 | 25 |
| M3.5 x 32 | BZX.S080402-M3.5-32 | 6.7 | 2.4 | 32 |
| M3.9 x 9.5 | BZX.S080402-M3.9-9.5 | 7.5 | 2.5 | 9.5 |
| M3.9 x 13 | BZX.S080402-M3.9-13 | 7.5 | 2.5 | 13 |
| M3.9 x 16 | BZX.S080402-M3.9-16 | 7.5 | 2.5 | 16 |
| M3.9 x 19 | BZX.S080402-M3.9-19 | 7.5 | 2.5 | 19 |
| M3.9 x 25 | BZX.S080402-M3.9-25 | 7.5 | 2.5 | 25 |
| M3.9 x 32 | BZX.S080402-M3.9-32 | 7.5 | 2.5 | 32 |
| M4.8 x 13 | BZX.S080402-M4.8-13 | 9.2 | 2.7 | 13 |
| M4.8 x 16 | BZX.S080402-M4.8-16 | 9.2 | 2.7 | 16 |
| M4.8 x 19 | BZX.S080402-M4.8-19 | 9.2 | 2.7 | 19 |
| M4.8 x 25 | BZX.S080402-M4.8-25 | 9.2 | 2.7 | 25 |
| M4.8 x 32 | BZX.S080402-M4.8-32 | 9.2 | 2.7 | 32 |
| M4.8 x 38 | BZX.S080402-M4.8-38 | 9.2 | 2.7 | 38 |
Advantages
1. Exact forging standard of knife edge and high hardness of surface make it easy to drill.
2. Using the advanced technology to control the core hardness, avoiding rupture effectivity,
3. Quick self drilling , drilling , tapping, locking the oncce, and combining with the strength.
4. Save contruction time, improve working efficency.
5. Technology, professional manufacturing , quality assurance.
