Product Details
Place of Origin: SHENZHEN Dongguang CHINA
Brand Name: BOZEX
Certification: ISO9001 , DIN
Model Number: BZX.S05810-M19
Payment & Shipping Terms
Minimum Order Quantity: 1000PCS
Packaging Details: 200pcs/box ;box size: 20cm*20cm*10cm
Delivery Time: 5-8working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50Million pcs per day
Other Name: |

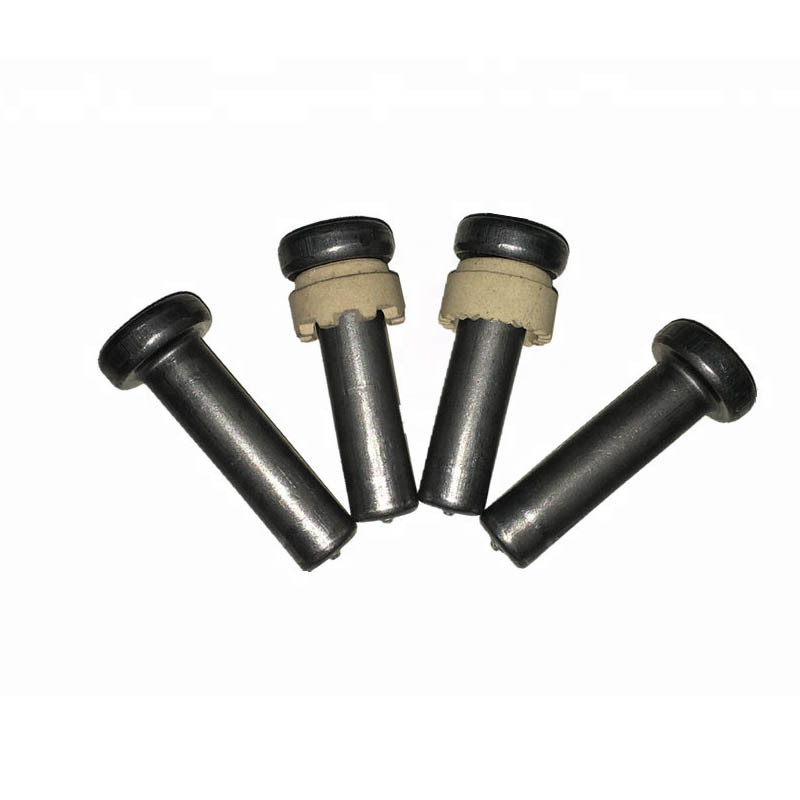

Steel Structure Cheese Head Nelson Stud With Ceramic Stainless Steel Coach Bolts |
Material: |
SLow Carbon Steel |
Standard: |
ISO, ISO 13918,AWS D1.1,JIS B1198,BS5400 |
Grade: |
4.8 |
Screw Length: |
40mm~300mm |
Finish: |
Plain, Passivated, Nature |
Other Name: |
Steel Structure Cheese Head Nelson Stud With Ceramic Stainless Steel Coach Bolts |
Material: |
SLow Carbon Steel |
Standard: |
ISO, ISO 13918,AWS D1.1,JIS B1198,BS5400 |
Grade: |
4.8 |
Screw Length: |
40mm~300mm |
Finish: |
Plain, Passivated, Nature |
Place of Origin:Guangdong, China.
Model Number:M13/M16/M19/M22/M25
Standard:ISO, ISO 13918,AWS D1.1,JIS B1198,BS5400
Application:Steel structure,bridge,building,airport,tower,pipeline,road,railway
Certificate:CE,ISO 9001,FPC BC1,S GS,BV,UKTC
Tensile strength:>=450Mpa Yield strength:>=350Mpa
Elongation: >=15%
Product Description
| Product Name | Cheese Head Shear Connector With Ceramic Ferrule For Steel Structure | ||
| Material | Low Carbon Steel | ||
| Grade | 4.8 | ||
| Diameter | M13,M16,M19,M22,M25 | ||
| Length | 40mm~300mm | ||
| Surface Treatment | Polished,prevent rust | ||
| Bottom Treatment | Slightly Curve or Chamfer | ||
| Head marking | "HYZ" or Client's brand. | ||
| Quality assurance | 3 years | ||
| Certifications | CE,SGS,FPC BC1,UDEM,UKTC,etc. | ||
| Hot sell Standard | Tensile strength | Yield strength | Elongation |
| EN ISO 13918 SD1 | ≥450 Mpa | ≥350 Mpa | ≥15% |
| AWS D1.1 TYPE B | ≥450 Mpa | ≥350 Mpa | ≥15% |
| BS 5400 | ≥495 Mpa | ≥385 Mpa | ≥18% |
| AS/NZS 1554.2 | ≥410 Mpa | ≥345 Mpa | ≥12% |
| JIS B1198 | ≥400 Mpa | ≥235 Mpa | ≥20% |
| GB/T 10433 | ≥420 Mpa | ≥340 Mpa | ≥14% |
| Chemical Component Of Material (%) | ||||||
| Material | C | Si | Mn | P | S | Al |
| SWRCH15A | 0.13-0.18 | ≤0.10 | 0.30-0.60 | ≤0.035 | ≤0.035 | ≥0.020 |
| SWRCH18A | 0.15-0.20 | ≤0.10 | 0.60-0.90 | ≤0.030 | ≤0.035 | ≥0.020 |
| Q345D | ≤0.18 | ≤0.50 | ≤1.70 | ≤0.030 | ≤0.025 | ≥0.015 |
1) Shear Connector Studs are designed to tie the concrete to the steel beams and to resist shear loadings between the concrete slab and steel beam in composite construction.
2) Shear studs are used in stud welding to secure steel framed buildings to create a shear connection between the steel and the concrete. We supply and fix all available sizes of welded shear studs for through deck and straight to steel welding.
3) All our products meet the current standards and specifications.
