Product Details
Place of Origin: SHENZHEN CHINA
Brand Name: BOZEX
Certification: ISO9001 DIN7982
Model Number: BZX.I0102-M68
Payment & Shipping Terms
Minimum Order Quantity: 1000PCS
Packaging Details: box size: 20cm*20cm*10cm
Delivery Time: 5-8working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50Million pcs per day
Product Name: |
304 Stainless Steel Pins Of Internal Retaining Rings For Machine |
Material: |
304 Stainless Steel, Alloy Steel |
Finish: |
Black Oxide |
Usage: |
Fasteners For Computer, Lamps, Bicycles, Various Machine Tools And Equipment |
Size: |
M8 - M68 |
Port: |
Shenzhen, Ningbo |
Product Name: |
304 Stainless Steel Pins Of Internal Retaining Rings For Machine |
Material: |
304 Stainless Steel, Alloy Steel |
Finish: |
Black Oxide |
Usage: |
Fasteners For Computer, Lamps, Bicycles, Various Machine Tools And Equipment |
Size: |
M8 - M68 |
Port: |
Shenzhen, Ningbo |

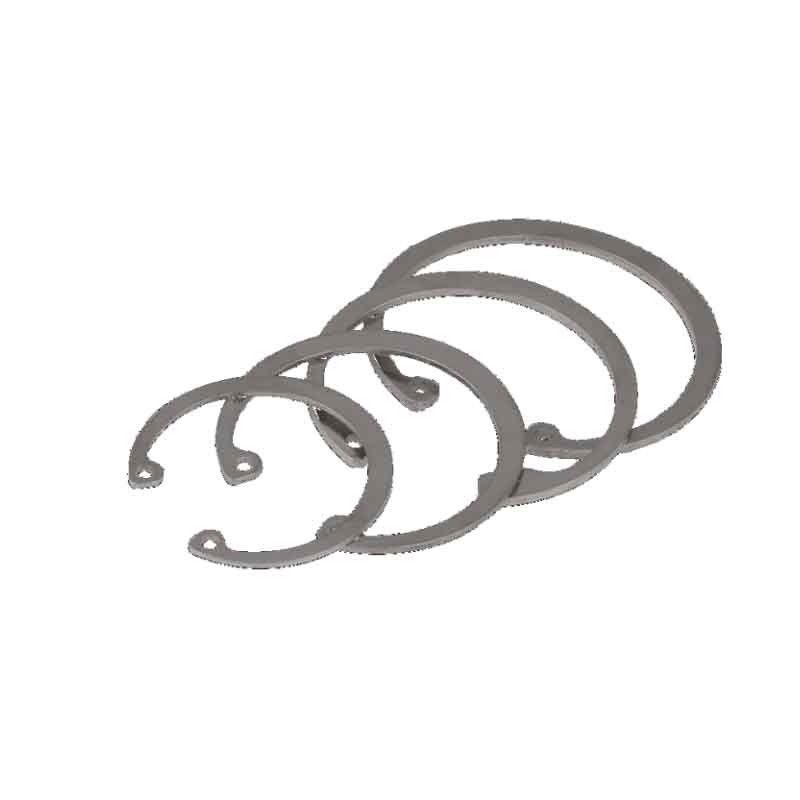

304 Stainless Steel Pins Of Internal Retaining Rings For Machine
Quick Details:
Name: 304 Stainless Steel Internal Retaining Rings
Material: 304 / 316 /201 Stainless Steel,Alloy Steel
Size: M6- M68
Service: OEM, ODM Customer brand Trade term: FOB/EXW/CIF
Certificate: ISO, GB, DIN
Function: Screws fastener for Machine, building, industry, lamps ect.
Service: 24Hrs on line service
Shipping Way: By UPS, DHL, FEDEX, Boat, Train
Products Description
304 Stainless Steel Pins Of Internal Retaining Rings is also called the circlip, which is divided into the retaining ring for the hole and the retaining ring for the shaft, which acts as an axial limit and can prevent the axial movement of other parts. The forming process is mostly sheet punching, and the functional section is tapered. After assembly, it is mostly "linear contact". Some large-size models are made by wire winding and punching excess materials. The section is regular rectangular, and the surface after assembly is "surface". touch".
Classification composition
Folding is classified according to its role
Flat retaining ring: A separable, substantially flat washer whose inner or outer part is used as the outer ring or inner ring rib of a radial cylindrical roller bearing.Oblique retaining ring: A separable ring with an "L"-shaped cross-section, the outer part of which acts as the inner rib of a radial roller ball bearing. Middle retaining ring: A separable ring in two or more rows of roller bearings, used to separate and guide each row of rollers.
The rib is a narrow shoulder that is parallel to the rolling direction and protrudes from the surface of the raceway. It is used to support and guide the rolling element and keep it in the bearing.
304 Stainless Steel Internal Retaining Rings Advantages
1. 304 Stainless Steel have good quality than 316 or 201 Stainless Steel , better perfomance, drawing appreciate.
2. Good and High Quality Control deparment, make sure provide you with satiesfied Flat Head Blunt Self Tapping Screws.
3. 6 production line make sure On time and quick Delivery
4. Competitive Price
5. Customer's Design and Logo are Welcome
6. Small Order Acceptable
304 Stainless Steel Pins Of Internal Retaining Rings Parameters
| Product Parameters | |||||
| Name | Alloy Steel Internal Retaining Rings | Material | Alloy Steel | ||
| Finish | Black Oxide | Strength Grade | - | ||
| Size | Code | OD. | Thick | Bore | Angle |
| M8 | BZX.I0101-M8 | 8.64 | 0.56 | 1 | 45° |
| M9 | BZX.I0101-M9 | 9.8 | 0.58 | 1 | 45° |
| M10 | BZX.I0101-M10 | 11 | 0.74 | 1.5 | 45° |
| M11 | BZX.I0101-M11 | 12 | 0.8 | 1.5 | 45° |
| M12 | BZX.I0101-M12 | 13 | 0.9 | 1.5 | 45° |
| M13 | BZX.I0101-M13 | 14.2 | 0.94 | 1.7 | 45° |
| M14 | BZX.I0101-M14 | 15 | 1 | 1.7 | 45° |
| M15 | BZX.I0101-M15 | 16.1 | 1 | 1.7 | 45° |
| M16 | BZX.I0101-M16 | 17.4 | 1 | 1.7 | 45° |
| M17 | BZX.I0101-M17 | 18.4 | 1 | 1.7 | 45° |
| M18 | BZX.I0101-M18 | 19.4 | 1 | 1.7 | 45° |
| M19 | BZX.I0101-M19 | 20.6 | 1 | 2 | 45° |
| M20 | BZX.I0101-M20 | 21.36 | 1 | 2.5 | 45° |
| M22 | BZX.I0101-M22 | 23.5 | 1 | 2.5 | 45° |
| M24 | BZX.I0101-M24 | 25.9 | 1.2 | 2.5 | 45° |
| M25 | BZX.I0101-M25 | 26.7 | 1.2 | 2.5 | 45° |
| M50 | BZX.I0102-M50 | 53.6 | 2 | 3 | 45° |
| M52 | BZX.I0102-M52 | 55.9 | 2 | 3 | 45° |
| M55 | BZX.I0102-M55 | 59.1 | 2 | 3 | 45° |
| M58 | BZX.I0102-M58 | 62.3 | 2 | 3 | 45° |
| M60 | BZX.I0102-M60 | 64.5 | 2 | 3 | 45° |
| M62 | BZX.I0102-M62 | 65.9 | 2 | 3 | 45° |
| M65 | BZX.I0102-M65 | 69.3 | 2.5 | 3 | 45° |
| M68 | BZX.I0102-M68 | 72.4 | 2.5 | 3 | 45° |
