Product Details
Place of Origin: SHENZHEN CHINA
Brand Name: BOZEX
Certification: CE, ROHS ISO9001
Model Number: BZX.R0304-M8-50
Payment & Shipping Terms
Minimum Order Quantity: 1000PCS
Price: usd0.01-usd0.6/pcs
Packaging Details: box size: 20cm*20cm*10cm
Delivery Time: 5-8working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50Million pcs per day
Product Name: |
Copper Domed Head Stainless Steel Solid Rivets |
Original Material: |
Copper, Stainless Steel, Aluminum |
Strength Grade: |
4.8 / 6.8 / 8.8 / 10.9 |
Application: |
General Industry, Machine Industry |
Thread Size: |
M2 To M8 |
Finish Color: |
Copper, Zinc Plated, Brass |
Product Name: |
Copper Domed Head Stainless Steel Solid Rivets |
Original Material: |
Copper, Stainless Steel, Aluminum |
Strength Grade: |
4.8 / 6.8 / 8.8 / 10.9 |
Application: |
General Industry, Machine Industry |
Thread Size: |
M2 To M8 |
Finish Color: |
Copper, Zinc Plated, Brass |

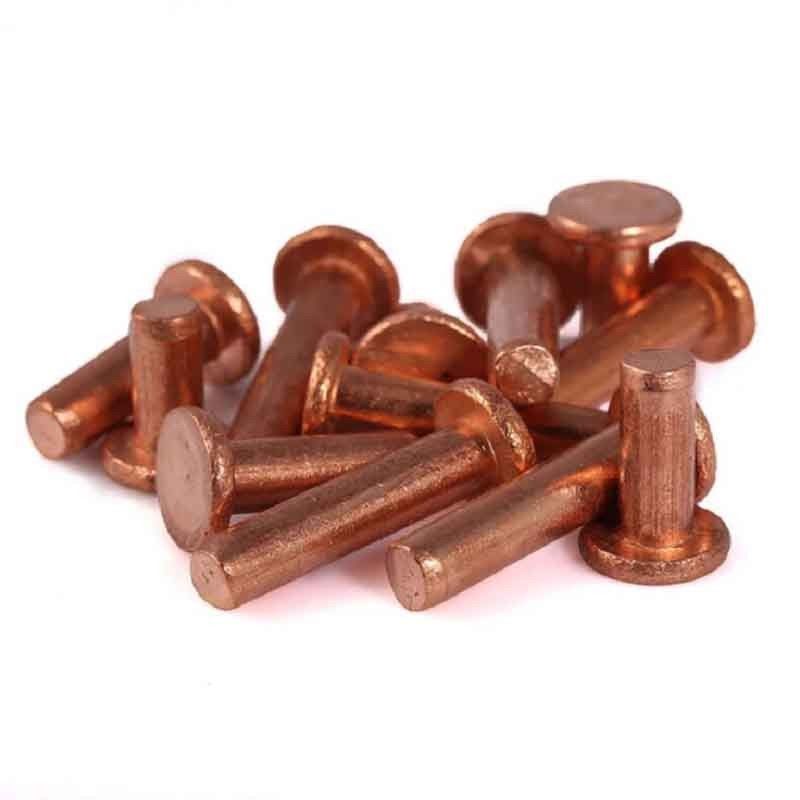

Copper Domed Head Stainless Steel Solid Rivets Of Size M8 For Automation Equipment
Quick Description:
Screw Name: Copper Domed Head Stainless Steel Solid Rivets
Material: Aluminum Material, 304 Stainless Steel, carbon steel, Alloy Steel
Screw Size: M2 - M8 Length: 3 - 50(mm)
Brand:According to customer's needs , ODM Customer's Brand
Packaging: Inner small box + carton box + pallet
Trade Term: EXW, CIF, FOB
Delivery Way: Shipping by Sea, By Air, By DHL, UPS, FEDEX
Copper Domed Head Stainless Steel Solid Rivets Of Size M8 For Automation Equipment
Aluminum Flat Head Solid Rivets is a nail-shaped object with a cap at one end: In riveting, the riveted parts are connected by their own deformation or interference. There are many types of rivets, and they are informal.
Aluminum Flat Head Solid Rivets, a part that uses its own deformation or interference to connect the riveted parts. There are many types of rivets, and they are informal
Copper Domed Head Stainless Steel Solid Rivets
There is also a pair of rivets, which are quite special. Divided into two parts, the thicker section with a cap has a hole in the center, and the other section of the thinner section with a cap is an interference fit. When riveting, drive the thin rod into the thick rod.
Rivet use
Half-round head rivets are mainly used for riveting occasions with larger lateral loads, and are the most widely used.
Flat cone-head rivets are corrosion resistant due to their fat heads. They are often used in riveting occasions with strong corrosion such as ship hulls and boiler water tanks.
Copper Domed Head Stainless Steel Solid Rivets head and 1200 countersunk head rivets are mainly used for riveting occasions where the surface must be smooth and the load is not large.
Copper Domed Head Stainless Steel Solid Rivets head and 1200 semi countersunk head rivets are mainly used for riveting occasions where the surface must be smooth and the load is not large.
Copper Domed Head Stainless Steel Solid Rivets Parameter
| Size | Code | Head Ht | Lg. | Head Dia. |
| M2 x 3 | BZX.R0304-M2-3 | 1.4 | 3 | 3.74 |
| M2 x 4 | BZX.R0304-M2-4 | 1.4 | 4 | 3.74 |
| M2 x 5 | BZX.R0304-M2-5 | 1.4 | 5 | 3.74 |
| M2 x 6 | BZX.R0304-M2-6 | 1.4 | 6 | 3.74 |
| M2 x 8 | BZX.R0304-M2-8 | 1.4 | 8 | 3.74 |
| M2 x 10 | BZX.R0304-M2-10 | 1.4 | 10 | 3.74 |
| M2 x 12 | BZX.R0304-M2-12 | 1.4 | 12 | 3.74 |
| M8 x 10 | BZX.R0304-M8-10 | 5.04 | 10 | 14.35 |
| M8 x 12 | BZX.R0304-M8-12 | 5.04 | 12 | 14.35 |
| M8 x 16 | BZX.R0304-M8-16 | 5.04 | 16 | 14.35 |
| M8 x 20 | BZX.R0304-M8-20 | 5.04 | 20 | 14.35 |
| M8 x 25 | BZX.R0304-M8-25 | 5.04 | 25 | 14.35 |
| M8 x 30 | BZX.R0304-M8-30 | 5.04 | 30 | 14.35 |
| M8 x 35 | BZX.R0304-M8-35 | 5.04 | 35 | 14.35 |
| M8 x 40 | BZX.R0304-M8-40 | 5.04 | 40 | 14.35 |
| M8 x 45 | BZX.R0304-M8-45 | 5.04 | 45 | 14.35 |
| M8 x 50 | BZX.R0304-M8-50 | 5.04 | 50 | 14.35 |
Advantages
1.Exact forging standard of knife edge and high hardness of surface make it easy to drill.
2.Using the advanced technology to control the core hardness, avoiding rupture effectivity,
3. Quick self drilling , drilling , tapping, locking the oncce, and combining with the strength.
4. Save contruction time, improve working efficency.
5. Technology, professional manufacturing , quality assurance.
