Product Details
Place of Origin: SHENZHEN CHINA
Brand Name: BOZEX
Certification: CE, ROHS ISO9001
Model Number: BZX.S0113-M2-4
Payment & Shipping Terms
Minimum Order Quantity: 1000PCS
Price: usd0.01-usd0.6/pcs
Packaging Details: box size: 20cm*20cm*10cm
Delivery Time: 5-8working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50Million pcs per day
Name: |
Size M12 Titanium Socket Head Cap Screws For Electric Equipment |
Material: |
Titanium, 316 Stainless Steel, Alloy Steel, Carbon Steel |
Screw Length: |
6 - 100mm |
Application: |
Industry Machinery, Industrial Equipment |
Thread Size: |
M2 To M12 |
Strength Grade: |
4.8 / 6.8 / 8.8 / 10.9 |
Finish: |
Black Oxide, Zinc Plated, Brass Color |
Packaging: |
Inner Box And Carton Box |
Name: |
Size M12 Titanium Socket Head Cap Screws For Electric Equipment |
Material: |
Titanium, 316 Stainless Steel, Alloy Steel, Carbon Steel |
Screw Length: |
6 - 100mm |
Application: |
Industry Machinery, Industrial Equipment |
Thread Size: |
M2 To M12 |
Strength Grade: |
4.8 / 6.8 / 8.8 / 10.9 |
Finish: |
Black Oxide, Zinc Plated, Brass Color |
Packaging: |
Inner Box And Carton Box |

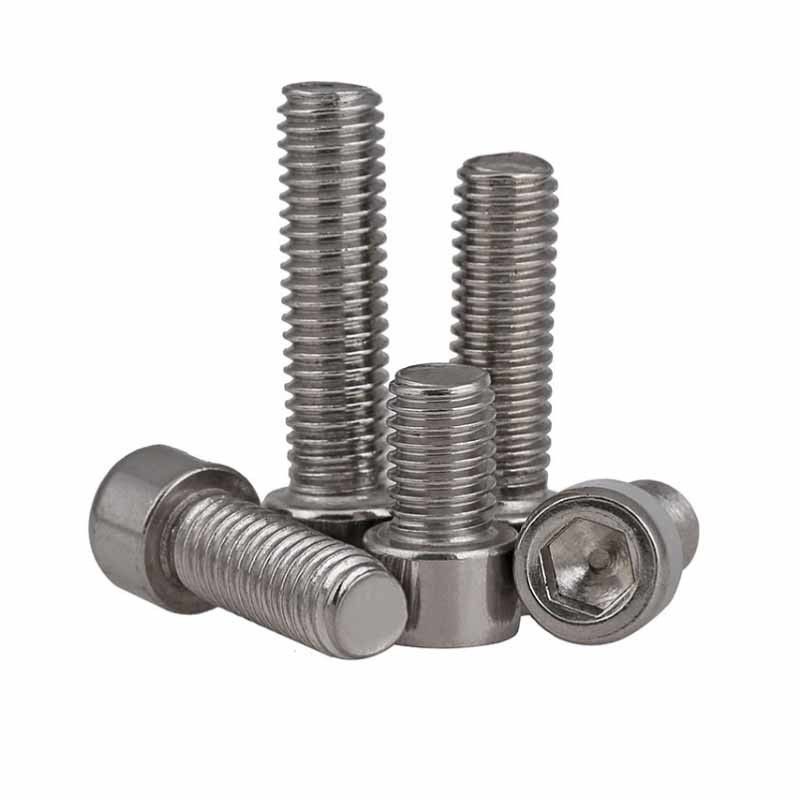

Size M12 Titanium Socket Head Cap Screws For Electric Equipment
Quick Description:
Screw Name: Titanium Socket Head Cap Screws
Material: Titanium, Alloy , Stainless Steel, carbon steel
Screw Size: M2 - M12 Length: 4 - 100(mm)
Brand:According to customer's needs , ODM Customer's Brand
Packaging: Inner small box + carton box + pallet
Delivery Way: Shipping by Sea, By Air, By DHL, UPS, FEDEX
Titanium Socket Head Cap Screws Description
Socket head Cap screws electroplating generally refers to the electroplating of iron Socket head Cap screws, and stainless steel hexagon socket screws are rarely electroplated. Iron hexagon socket screws are divided into environmental protection and non-environmental protection. Hexagon socket screws with environmentally friendly electroplating include environmentally friendly blue zinc, environmentally friendly color zinc, environmentally friendly nickel, environmentally friendly black zinc, environmentally friendly white zinc, environmentally friendly black nickel and so on. Socket head Cap screws are non-environmentally friendly electroplating with white zinc, color zinc, black zinc, black nickel, white nickel, black coated, blue and white zinc and so on. Of course there are some special electroplating, more like military green, Dacromet. If the stainless steel hexagon socket screws need to be electroplated, it is also possible. However, in order to increase the salt spray time of the stainless steel hexagon socket screws, the electroplating passivation treatment is generally used. Stainless steel hexagon socket screws sometimes require electroplating. In order to make the color of the product and the stainless steel hexagon socket screw the same. The stainless steel screws are electroplated.
Socket head Cap screws are divided into cylindrical head socket bolts according to their heads. This is the most commonly used, and there are many types of it. According to the material, there are iron, that is, carbon steel and stainless steel. Stainless steel hexagon socket bolts are also made of stainless steel SUS304 and SUS202. Hexagon socket head bolts with round head, this is also called pan head hexagon socket bolt. The countersunk head hexagon socket bolt has a flat head and a hexagon socket inside. There is also a special category of national standards, called headless hexagon socket bolts. That is, the machine screws we often call, pay screws, and set screws. This is the common name for the headless hexagon socket bolt, but the meaning is the same. Of course, there are some flower-shaped hexagon socket head bolts. This is rarely used, and it is basically hard to see in the market.
Although there are many types of Socket head Cap screws in national standards, there are basically some special ones, and basically few people in the market will use them. The more commonly used one is to count the cylinder head hexagon socket screw, also called the cylinder Socket head Cap screws.
316 Stainless Steel Socket Head Cap Screws Parameter
Size | Code | Dia. | Heat Ht. | Lg. |
M2 x 4 | BZX.S0113-M2-4 | 3.98 | 2 | 4 |
M2 x 5 | BZX.S0113-M2-5 | 3.98 | 2 | 5 |
M2 x 6 | BZX.S0113-M2-6 | 3.98 | 2 | 6 |
M2 x 8 | BZX.S0113-M2-8 | 3.98 | 2 | 8 |
M2 x 10 | BZX.S0113-M2-10 | 3.98 | 2 | 10 |
M2 x 12 | BZX.S0113-M2-12 | 3.98 | 2 | 12 |
M2 x 14 | BZX.S0113-M2-14 | 3.98 | 2 | 14 |
M2x 16 | BZX.S0113-M2-16 | 3.98 | 2 | 16 |
M2 x 18 | BZX.S0113-M2-18 | 3.98 | 2 | 18 |
M2. x 20 | BZX.S0113-M2-20 | 3.98 | 2 | 20 |
M3 x 6 | BZX.S0113-M3-6 | 5.68 | 3 | 6 |
M3 x 8 | BZX.S0113-M3-8 | 5.68 | 3 | 8 |
M3 x 10 | BZX.S0113-M3-10 | 5.68 | 3 | 10 |
M3 x 12 | BZX.S0113-M3-12 | 5.68 | 3 | 12 |
M3 x 14 | BZX.S0113-M3-14 | 5.68 | 3 | 14 |
M3 x 16 | BZX.S0113-M3-16 | 5.68 | 3 | 16 |
M3 x 18 | BZX.S0113-M3-18 | 5.68 | 3 | 18 |
M3 x 20 | BZX.S0113-M3-20 | 5.68 | 3 | 20 |
M3 x 22 | BZX.S0113-M3-25 | 5.68 | 3 | 22 |
M3 x 25 | BZX.S0113-M3-25 | 5.68 | 3 | 25 |
M3 x 30 | BZX.S0113-M3-30 | 5.68 | 3 | 30 |
M3 x 35 | BZX.S0113-M3-35 | 5.68 | 3 | 35 |
M3 x 40 | BZX.S0113-M3-40 | 5.68 | 3 | 40 |
M12 x 10 | BZX.S0113-M12-10 | 18.27 | 12 | 10 |
M12 x 15 | BZX.S0113-M12-15 | 18.27 | 12 | 15 |
M12 x 20 | BZX.S0113-M12-20 | 18.27 | 12 | 20 |
M12 x 25 | BZX.S0113-M12-25 | 18.27 | 12 | 25 |
M12 x 30 | BZX.S0113-M12-30 | 18.27 | 12 | 30 |
M12 x 35 | BZX.S0113-M12-35 | 18.27 | 12 | 35 |
M12 x 40 | BZX.S0113-M12-40 | 18.27 | 12 | 40 |
M12 x 45 | BZX.S0113-M12-45 | 18.27 | 12 | 45 |
M12 x 50 | BZX.S0113-M12-50 | 18.27 | 12 | 50 |
M12 x 55 | BZX.S0113-M12-55 | 18.27 | 12 | 55 |
M12 x 60 | BZX.S0113-M12-60 | 18.27 | 12 | 60 |
M12 x 65 | BZX.S0113-M12-65 | 18.27 | 12 | 65 |
M12 x 70 | BZX.S0113-M12-70 | 18.27 | 12 | 70 |
M12 x 75 | BZX.S0113-M12-75 | 18.27 | 12 | 75 |
M12 x 80 | BZX.S0113-M12-80 | 18.27 | 12 | 80 |
M12 x 85 | BZX.S0113-M12-85 | 18.27 | 12 | 85 |
M12 x 90 | BZX.S0113-M12-90 | 18.27 | 12 | 90 |
M12 x 95 | BZX.S0113-M12-95 | 18.27 | 12 | 95 |
M12 x 100 | BZX.S0113-M12-100 | 18.27 | 12 | 100 |
Advantages
1.Exact forging standard of knife edge and high hardness of surface make it easy to drill.
2.Using the advanced technology to control the core hardness, avoiding rupture effectivity,
3. Quick self drilling , drilling , tapping, locking the oncce, and combining with the strength.
4. Save contruction time, improve working efficency.
5. Technology, professional manufacturing , quality assurance.
